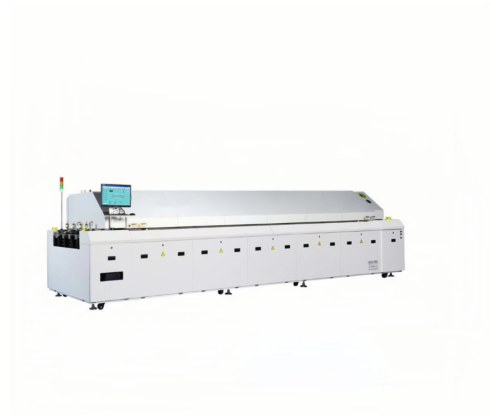

Name: High Quality SMT Line Lead Free Reflow Oven YS-1020
Brand: YUSH Electronic Technology Co.,Ltd
SKU: YS-1020
Price: 20000 USD
Availability: InStock

제품 상세정보

원래 장소: 중국, 광동

브랜드 이름: YUSH

모델 번호: YS-1020

지불과 운송 용어

최소 주문 수량: 1

가격: USD20000

배달 시간: 20 일

지불 조건: L/C, D/A, D/P, T/T, Western Union

공급 능력: 1000

가장 좋은 가격 을 구하라

제품 상세정보

제품 설명

강조하다:
                                                                                                                                                                                                                lead free reflow oven, SMT reflow oven YS-1020, solder reflow oven with warranty


무게:	2100 킬로그램	전원 (W):	10kW
전압:	380V	치수 (lwh):	580013201490mm
모델 번호:	YS-1020

무게:	2100 킬로그램
전원 (W):	10kW
전압:	380V
치수 (lwh):	580013201490mm
모델 번호:	YS-1020

High Quality SMT Line Lead Free Reflow Oven YS-1020

Introduction:

1. The brand computer and Siemens PLC intelligent control system, high precision temperature control is ± 1-2 ℃ (if the computer

crash accident, it can realize off-line work, do not affect production) and to ensure that the control system is stable and reliable;

2. Windows 7 operating interface with powerful and simple operation.

3.In order to ensure safety and reliability, the cylinder body can be lift up automatically.

4. Device is equipped with mesh belt, transport smoothly, no shaking and no deformation, which ensure smooth PCB transport.

Synchronous guide transmission mechanism and automatic SMT machine online connection ensure that guide adjustable wide

precision and high service life.

5. Automatic control lubrication system and automatic lubrication transmission chain.

6.All heating zone control by computer PID(upper temperature zone and lower temperature zone implementation independent

temperature control, that means it can divide temperature area heat, in order to reduce starting power)

7. Net/chain transmission by computer to carry out the whole closed loop control, which can meet different kinds of PCB production

at the same time.

8. With fault sound and light alarm function.

9. With leakage protector, ensure that the operating personnel and control system security.

10.The built-in UPS and automatic delay shutdown system guarantee return welder in power or overheat do not damaged PCB and the

machine.

11. The German ERSA world leading microcirculation heating mode, and the upper and lower independent air microcirculation

system, temperature uniformity and thermal compensation high efficiency, high efficient supercharged accelerated air duct, greatly

improve the circulating hot air flow, heat up temperature quickly (about twenty minutes), thermal compensation for high efficiency,

high temperature welding and curing;

12. The upper and lower every temperature zone with independent temperature inductive sensor, real-time monitoring and

compensation every temperature zone balance;

13. Have password administration of the operating system, to prevent the irrelevant personnel changes to the process parameters,

operation records management traceability process parameters change process, improve the management convenient. For storing user

existing temperature speed setting and Settings of the temperature curve, and can be used for all data and curve printing;

14. Integrated control window, the computer switch, test curve, print curve and data transmission are easily operation, humanized

design. Equipped with three-channel temperature curve online testing system, may at any time to check welding objects by the actual

temperature curve (without the other match temperature curve tester);

15. From international technology quick cooling system, use a magnifying glass type efficient rapid cooling, cooling speed can reach

3.5 ~ 6 ℃/ SEC, management is very convenient; The outer forced cooling device, ensure that spot crystal effect (Option selected

items, the standard configuration for forced natural air cooling)

Specification:
