제품 상세정보
원래 장소: 광동
브랜드 이름: YUSH

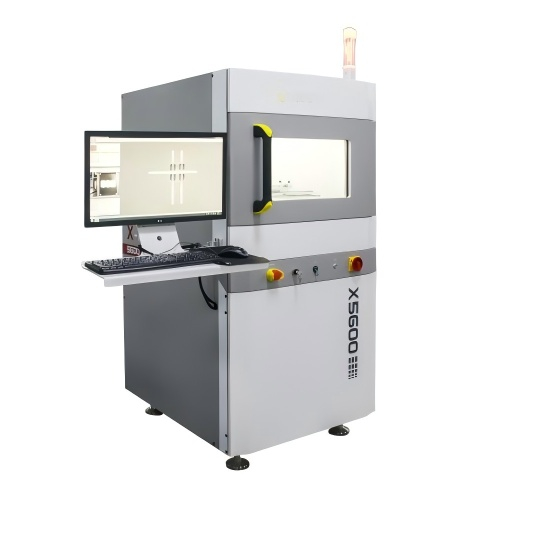

모델 번호: YS-X5600
지불과 운송 용어
최소 주문 수량: 1
가격: USD31940
배달 시간: 20일
지불 조건: L/C, D/A, D/P, T/T, 웨스턴 유니온
공급 능력: 100
무게: |
100kg |
모델: |
YS-X5600 |
전압 범위: |
40-90kV |
전류 범위: |
10-200 μA |
시계: |
130mm*130mm |
무게: |
100kg |
모델: |
YS-X5600 |
전압 범위: |
40-90kV |
전류 범위: |
10-200 μA |
시계: |
130mm*130mm |
1.Application:
| 1: Semiconductor | 2: Automotiveelectronics | 3: PCB’A | 4: LED |
| 5: BGA/QFN inspection | 6: Aluminum die casting | 7: Mould | 8: Electrical and mechanical components |
| 9: Biological agriculture seed | 10: Aviation component | 11: Wheel hub | 12: Wire/USB/Plug |
2.Functions and Features:
| Function | Advantages |
| X-ray detector can move along Z direction, Speed of table moving along X-Y direction can be adjusted. | Larger effective detection range, improving the magnification and the detection efficiency of the product. |
| Long life X-ray tube, maintenance free for life | Adopt the world's top Japanese Hamamatsu X-ray source |
| Fault less than 2.5μm can be detected. High detection repeat accuracy. | Easy to distinguish the gold wire bending and break of the semiconductor package. |
| Powerful CNC Measuring Function, can inspect automatically, testing program can be edited. | Suitable for large-scale inspection and improve detection efficiency. |
| Small body, easy to place, less space | Can be used in laboratories, materials rooms, etc. |
| Large navigation view, table will move to where you click the mouse. | Very easy to operate, quickly find item defects and improve detection efficiency |
3.Application Advantage:
4.Automatic Void Ratio Calculation
Enhanced BGA inspection function
YS-X5600 can quickly select and mark a single solder ball, or select the solder balls to be inspected by matrix box ; it can manually or automatically identify BGA solder balls and complete the inspection. Follow the system guidelines to easily complete the inspection process and ensure accurate and reliable inspection results.
5.X-Ray Working Principle
6.CNC Programming
