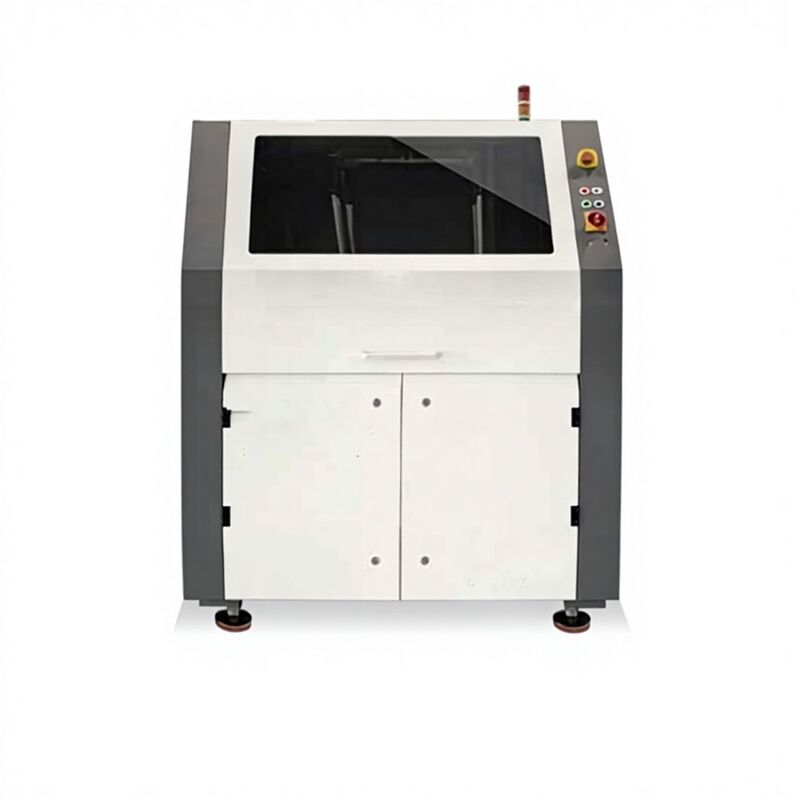

제품 상세정보
원래 장소: 중국 광둥
브랜드 이름: YUSH
지불과 운송 용어
최소 주문 수량: 1세트
가격: $19,000-22,000 / set
무게: |
1050kg |
힘: |
10kW |
전압: |
220V/380V |
PCB 공정측: |
≥3 |
PCB 중량: |
5kg 이하 |
PCB 두께: |
1-6mm |
PCB 전송 속도: |
0.2-10 |
장치 크기: |
1435(길이)*1800(폭)*1670(높이)mm |
PCB 상단 여유 공간: |
120mm |
PCB 바닥 공백: |
60mm |
컨베이어 벨트 높이: |
900 ± 20 mm |
조정 가능한 컨베이어 범위: |
50-450 밀리미터 |
공기 흡입 압력: |
0.6 |
질소 소비: |
1.5 |
최대 전력 소비: |
<12kW |
무게: |
1050kg |
힘: |
10kW |
전압: |
220V/380V |
PCB 공정측: |
≥3 |
PCB 중량: |
5kg 이하 |
PCB 두께: |
1-6mm |
PCB 전송 속도: |
0.2-10 |
장치 크기: |
1435(길이)*1800(폭)*1670(높이)mm |
PCB 상단 여유 공간: |
120mm |
PCB 바닥 공백: |
60mm |
컨베이어 벨트 높이: |
900 ± 20 mm |
조정 가능한 컨베이어 범위: |
50-450 밀리미터 |
공기 흡입 압력: |
0.6 |
질소 소비: |
1.5 |
최대 전력 소비: |
<12kW |
| Parameter Category | Parameter Name | Specification |
|---|---|---|
| Body Parameters | Device Dimensions | 1435(L)*1800(W)*1670(H) |
| Equipment Weight (KG) | 1050 | |
| PCB Top Clearance | 120 | |
| PCB Bottom Clearance | 60 | |
| PCB Process Side | ≥3 | |
| Conveyor Belt Height Above Ground | 900±20 | |
| PCB Transfer Speed | 0.2-10 | |
| PCB Weight (KG) | ≤5 | |
| PCB Thickness (including fixture) | 1-6 | |
| Adjustable Range of Conveyor Belt | 50-450 | |
| Conveyor Belt Width Adjustment Method | Electric | |
| PCB Transfer Direction | Left to right | |
| Air Intake Pressure | 0.6 | |
| Nitrogen Supply | Provided by customer | |
| Nitrogen Inlet Pressure | 0.6 | |
| Nitrogen Consumption | 1.5 | |
| Required Nitrogen Purity | >99.999 | |
| Voltage | 380 | |
| Frequency | 50/60 | |
| Maximum Power Consumption | <12 | |
| Maximum Current | <25 | |
| Machine Noise | <65 | |
| Communication Interface | SMEMA | |
| Welding System | Welding X-axis Maximum Travel | 510 |
| Maximum Travel of Welding Y Axis | 450 | |
| Welding Z Axis Maximum Travel | 60 | |
| Minimum Nozzle Outer Diameter | 5.5 | |
| Nozzle Inner Diameter | 2.5-10 | |
| Maximum Crest Height | 5 | |
| Tin Furnace Capacity | Approx.13kg(Sn63Pb)/ Approx.12kg(lead-free) | |
| Maximum Soldering Temperature | 330 | |
| Tin Furnace Heating Power | 1.15 | |
| Preheating System | Preheat Temperature Range | <200 |
| Heating Power | 6 | |
| Heating Method | Hot air | |
| Spray System | Spray X-axis Maximum Travel | 510 |
| Maximum Stroke of Spray Y Axis | 450 | |
| Spray Height | 60 | |
| Positioning Speed | <200 | |
| Flux Tank Capacity | 2 |
After the pre-programmed program of the spray head controls the PCB board to move to the designated position, only the parts that need to be soldered are sprayed with flux. After spraying and preheating, the electromagnetic pump platform drives the electromagnetic pump to move to the required position according to the preset program for welding, and then completes the soldering process.
Using an electromagnetic pump instead of a mechanical pump provides stable wave peaks during operation, eliminates mechanical wear, and minimizes waste production. The welding module incorporates a high-precision motion system to ensure process accuracy, while specialized processes significantly reduce tin bridging phenomena. User experience is enhanced with welding monitoring cameras and automatic wave height detection.
The transmission system utilizes roller conveying, which increases welding space and facilitates soldering of components located close to the board edges.
The standard machine features precision drop nozzles imported from Germany with 130μm diameter, ensuring uniform flux application on required welding areas. Minimum spray area is 3mm, saving at least 90% flux compared to traditional spray methods. For applications requiring less precision, alternative spray nozzles are available for faster spray processes.
All module movements are driven by servo motors and ball screws, ensuring smooth and stable operation with repeatability reaching 0.05mm.
