강조하다:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                carrier tape forming machine for PCB, PCB depaneling machine with carrier tape, automated carrier tape forming equipment


무게:	290KG	전압:	220VAC
전원공급장치:	220V 50-60HZ,1.2KWA	먹이는 폭:	8~27mm
용량:	600m/h	차원:	14068230cm
공기의 압력:	0.6MPa	공기 흐름:	2500 L/H
온도 제한:	28℃이하	핵심 구성요소:	모터
수유 시스템:	브레이크 자동 장력	예열 제어:	PLC 온도 시스템
성형 시스템:	진공 및 열기	절단 시스템:	정밀 절단 바퀴
펀칭 구조:	고정밀 기계

무게:	290KG
전압:	220VAC
전원공급장치:	220V 50-60HZ,1.2KWA
먹이는 폭:	8~27mm
용량:	600m/h
차원:	14068230cm
공기의 압력:	0.6MPa
공기 흐름:	2500 L/H
온도 제한:	28℃이하
핵심 구성요소:	모터
수유 시스템:	브레이크 자동 장력
예열 제어:	PLC 온도 시스템
성형 시스템:	진공 및 열기
절단 시스템:	정밀 절단 바퀴
펀칭 구조:	고정밀 기계

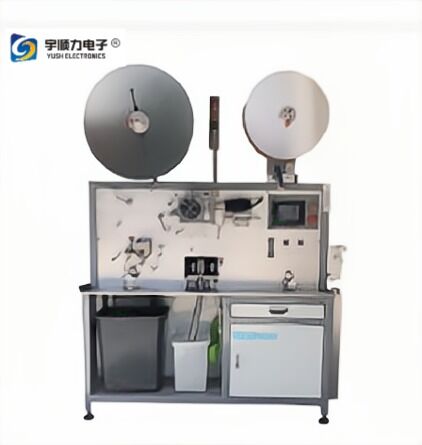

Carrier Tape Forming Machine

Key Features

Feeding System: Brake automatic tension feeding with optical sensor signaling, PLC control, and adjustable speed
Feeding Buffer: Prevents tape bending and damage from unstable feeding
Preheating System: PLC-controlled temperature system improves forming speed and prevents air holes or defective tapes
Forming System: Vacuum and hot air preheating with continuous rotary mould for rapid molding and guided pocket formation
Cutting System: Guidance mechanism with precision cutting wheel for accurate width sizing and automatic offcut removal
Punching Structure: High-precision mechanical working structure for continuous high-speed EIA standard chain hole production
Rolling Buffer: Automatic tension buffer with PLC control and adjustable speed to prevent product damage
Rolling System: Hierarchical order neat winding around tray with adjustable speed

Technical Specifications

Model	YS-8000F
Feeding Tape Width	8-27mm
Capacity	600m/h
Products Standard	EIA Standard
Weight	290KG
Dimension	140×68×230cm
Power Supply	220V 50-60HZ, 1.2KWA with reliable grounding
Air Supply	Compressed air inlet pressure ≥0.6 MPa, flow rate ≥2500 l/H, oil-free, water-free, and dust-free
Environmental Requirement	Temperature below 28℃, dust-free workshop
