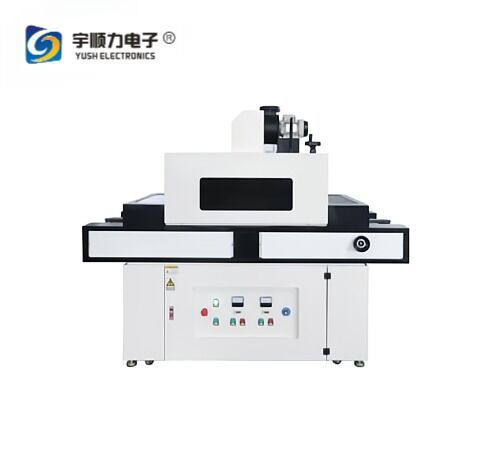

UV Curing Oven Drying Oven

Name: UV Curing Oven Drying Oven
Brand: YUSH Electronic Technology Co.,Ltd
SKU: YS-U1
Price: 10 USD
Availability: InStock

제품 상세정보

원래 장소: 중국 광둥

브랜드 이름: YUSH

모델 번호: YS-U1

지불과 운송 용어

최소 주문 수량: 1세트

가격: $10,000 / set

가장 좋은 가격 을 구하라

제품 상세정보

제품 설명

강조하다:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                UV curing oven for PCB, drying oven with UV curing, PCB depaneling UV oven


무게:	350KG	제어 시스템:	기구
컨베이어 속도:	100~3000mm/분	자외선량:	1세트
자외선 전력:	2Kw/세트	UV 램프 수명:	1000-1200시간
컨베이어 재료:	테플론 메쉬 벨트	유효 너비:	50-450mm
냉각 영역:	독립적인	모터 유형:	수입
속도 조정:	0-2000mm/min	반사경 유형:	높은 빛 반사판
체인 재료:	스테인레스 스틸	램프 제어:	분할
램프 높이:	조절할 수 있는

무게:	350KG
제어 시스템:	기구
컨베이어 속도:	100~3000mm/분
자외선량:	1세트
자외선 전력:	2Kw/세트
UV 램프 수명:	1000-1200시간
컨베이어 재료:	테플론 메쉬 벨트
유효 너비:	50-450mm
냉각 영역:	독립적인
모터 유형:	수입
속도 조정:	0-2000mm/min
반사경 유형:	높은 빛 반사판
체인 재료:	스테인레스 스틸
램프 제어:	분할
램프 높이:	조절할 수 있는

UV Curing Oven Drying Oven

Product Overview

YUSH UV oven is a cost-effective drying solution designed for adhesive applications including glue, UV photosensitive materials, inks, and epoxy resin adhesives. This equipment enables instant surface curing and drying following injection or printing processes on various materials.

Key Features

Advanced control system with instrument or PLC+touch screen for stable operation
UV lamp lifetime of 1000-1200 hours with higher energy output and stronger coating penetration
Abnormal lamp protection device for enhanced safety
Teflon conveyor belt with stepless speed regulation for stable and adjustable operation
Focus design with imported high-light reflector lamp shade for instant drying
Independent cooling area ensures low output temperature for PCBs
Imported motor transmission system with smooth running and adjustable speed (0-2000mm/min)
Stainless steel chain transportation with adjustable effective width (50-450mm)
In/out board detection function for monitoring board count and transportation
Complete UV system with transformer, reflector, lamp tube, trigger, and UV reflective devices
Individual UV lamp group control with adjustable height settings

Technical Specifications

Specifications	YS-U1	YS-U2	YS-U3
Transport	Teflon mesh belt	Stainless steel chain	Stainless steel chain
Control System	Instrument	PLC+touch screen	PLC+touch screen
Conveyor Speed	100~3000mm/min	100~3000mm/min	100~3000mm/min
UV Light Quantity	1 set	2 sets	1 set (2 sets optional)
UV Light Power	2Kw/set	3Kw/set	6Kw/set
Weight	Approx. 350KG	Approx. 420KG	Approx. 420KG

Packaging & Shipping

Our Services

Company Information

YUSH Electronic Technology Co., Ltd is a professional manufacturer and trader specializing in the research, development, and production of PCB depaneling equipment, hot bar welding machines, and touch screen film sticking machines. Located in Dongguan City, Guangdong Province, China, our facility benefits from convenient transportation access. All products comply with international quality standards and are highly regarded in global markets. We welcome custom orders and look forward to establishing successful business relationships worldwide.

Frequently Asked Questions

Who are we?
Based in Jiangsu, China since 2014, we serve global markets including Eastern Europe, North America, South America, and Europe with a team of 301-500 professionals.

How do we guarantee quality?
Pre-production sampling and final inspection before shipment ensure consistent product quality.

What products do we offer?
PCB depaneling machines, PCB separators, PCB cutting machines, PCB depaneling equipment, and V-cut machines.

Why choose us?
Founded in 2004 and located in Jiangsu's manufacturing hub, we bring extensive experience and advanced production equipment to deliver professional PCB separation and electronic equipment machinery.

What services do we provide?
Accepted delivery terms: FOB, CIF, EXW, DDP, DDU, Express Delivery, DAF
Accepted payment currencies: USD, EUR, JPY, CAD, AUD, HKD, GBP, CNY, CHF
Accepted payment methods: T/T, L/C, D/P D/A, MoneyGram, Credit Card, PayPal, Western Union, Cash, Escrow
Languages spoken: English, Chinese, Spanish, Japanese, Portuguese, German, Arabic, Korean, Hindi
