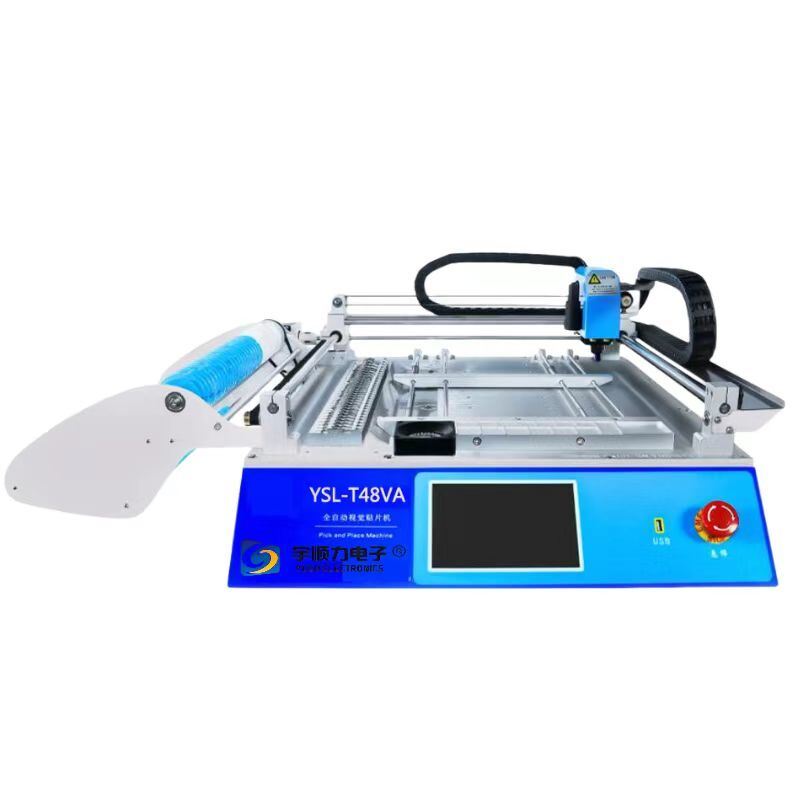

High Precision 2 Heads Desktop Vision Pick and Place Machine

Name: High Precision 2 Heads Desktop Vision Pick and Place Machine
Brand: YUSH Electronic Technology Co.,Ltd
SKU: YS-T48VA
Price: 451.00 USD
Availability: InStock

제품 상세정보

원래 장소: 중국 장쑤성

브랜드 이름: YUSH

모델 번호: YS-T48VA

지불과 운송 용어

최소 주문 수량: 1세트

가격: $2,900 / set

가장 좋은 가격 을 구하라

제품 상세정보

제품 설명

강조하다:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                2 heads desktop pick and place machine, high precision PCB depaneling machine, vision pick and place machine with warranty


무게:	40KG	치수:	940mm(길이)x 710mm(폭)x 340mm(높이)
전원공급장치:	AC220V(50Hz, 단상)/AC110V(60Hz, 단상),300W	공기 공급:	외부 전원 공급 장치가 필요하지 않습니다.
압력 발생:	붙박이 진공 펌프	장착 헤드 양:	2
장착 속도:	4000CPH	장착 정확도:	0.025mm
구성 요소 유형:	저항, 커패시터, 다이오드, SOT, SOP, QFP, QFN, BGA	컴퍼넌트 범위 정보:	0402~22mmX22mm
PCB 두께:	0.6mm~3.5mm	PCB 크기:	345mm(길이) x 360mm(폭)
핵심 구성요소:	PLC, 엔진, 베어링, 기어 박스, 모터	XY축 드라이브:	폐쇄 루프 제어 기능을 갖춘 스테핑 모터
시각적 교정:	듀얼 CCD 디지털 산업용 카메라

무게:	40KG
치수:	940mm(길이)x 710mm(폭)x 340mm(높이)
전원공급장치:	AC220V(50Hz, 단상)/AC110V(60Hz, 단상),300W
공기 공급:	외부 전원 공급 장치가 필요하지 않습니다.
압력 발생:	붙박이 진공 펌프
장착 헤드 양:	2
장착 속도:	4000CPH
장착 정확도:	0.025mm
구성 요소 유형:	저항, 커패시터, 다이오드, SOT, SOP, QFP, QFN, BGA
컴퍼넌트 범위 정보:	0402~22mmX22mm
PCB 두께:	0.6mm~3.5mm
PCB 크기:	345mm(길이) x 360mm(폭)
핵심 구성요소:	PLC, 엔진, 베어링, 기어 박스, 모터
XY축 드라이브:	폐쇄 루프 제어 기능을 갖춘 스테핑 모터
시각적 교정:	듀얼 CCD 디지털 산업용 카메라

High Precision 2 Heads Desktop Vision Pick and Place Machine

This advanced desktop vision pick and place machine delivers exceptional precision for PCB assembly applications, featuring dual mounting heads and comprehensive vision calibration capabilities.

Key Features

X, Y axis driven by stepping motor with closed loop control and inlet synchronous belt
Dual visual calibration (CCD digital industrial camera) with Mark point calibration support
Built-in computer with embedded Linux operating system and 7-inch touch screen
29 sets of tape feeder stack positions (8mm-22, 12mm-4, 16mm-2, 24mm-1)
Supports minimum 0402 device, 0.5mm pin spacing chips, and 4mm height shaped elements
14 front IC bits with support for countertop custom IC tray and vibrating Fida
Maximum PCB size: 345mm × 360mm

Technical Specifications

Dimensions	940mm (L) × 710mm (W) × 340mm (H)
Weight	40kg
Power Supply	AC220V (50Hz, single-phase) / AC110V (60Hz, single-phase); 300W
Air Supply	No external power supply required
Vacuum Generation	Built-in vacuum pump
Mounting Head Quantity	Two
Mounting Speed	4000 CPH (under optimal conditions)
Mounting Accuracy	0.025mm
Component Type	Resistance, capacitor exhaust resistance, cylindrical diode, aluminum capacitor, SOT, SOP, QFP, QFN, BGA, etc.
Component Range	0402 to 22mm × 22mm components
PCB Thickness	0.6mm ~ 3.5mm
PCB Size	345mm (L) × 360mm (W) standard

Packaging & Delivery

Manufacturer Profile

YUSH Electronic Technology Co., Ltd was founded in 2005 and is located in Jiangsu, China, specializing in professional PCB separator and depanelizer electronic equipment machinery. The company features advanced production and processing equipment with an experienced development and manufacturing team, half of whom have over 10 years of experience in the electronic equipment industry.

Since 2004, the company leadership has invested in developing and manufacturing PCB separators and depaneling machines. We prioritize product quality, safety, and innovation, producing high-quality, stable performance, cost-effective products that improve production yields, increase productivity, and enhance customer market competitiveness.

YUSH offers various PCB separation types including manual, motor-driven, pneumatic-driven, mold punching, and milling cutter router machines. Due to excellent quality and competitive pricing, our customers span worldwide markets, establishing YUSH as one of China's largest PCB separator production bases.

Frequently Asked Questions

Who are we?

Based in Jiangsu, China, operating since 2014, serving global markets including Eastern Europe (20%), North America (20%), South America (15%), Southern Europe (10%), Northern Europe (10%), Western Europe (10%), South Asia (10%), and Mid East (5%). Our organization employs 301-500 professionals.

How do we guarantee quality?

We conduct pre-production sampling before mass production and perform final inspection before shipment to ensure consistent quality standards.

What products do we offer?

PCB depaneling machines, PCB separators, PCB cutting machines, PCB depaneling equipment, and V-cut machines.

Why choose us over other suppliers?

YUSH Electronic Technology Co., Ltd., founded in 2004 in Jiangsu's manufacturing hub, specializes in professional PCB separator and depanelizer equipment. We feature advanced production equipment and experienced technical expertise.

What services do we provide?

Accepted delivery terms: FOB, CIF, EXW, DDP, DDU, Express Delivery, DAF. Payment currencies: USD, EUR, JPY, CAD, AUD, HKD, GBP, CNY, CHF. Payment methods: T/T, L/C, D/P D/A, MoneyGram, Credit Card, PayPal, Western Union, Cash, Escrow. Languages: English, Chinese, Spanish, Japanese, Portuguese, German, Arabic, Korean, Hindi.
