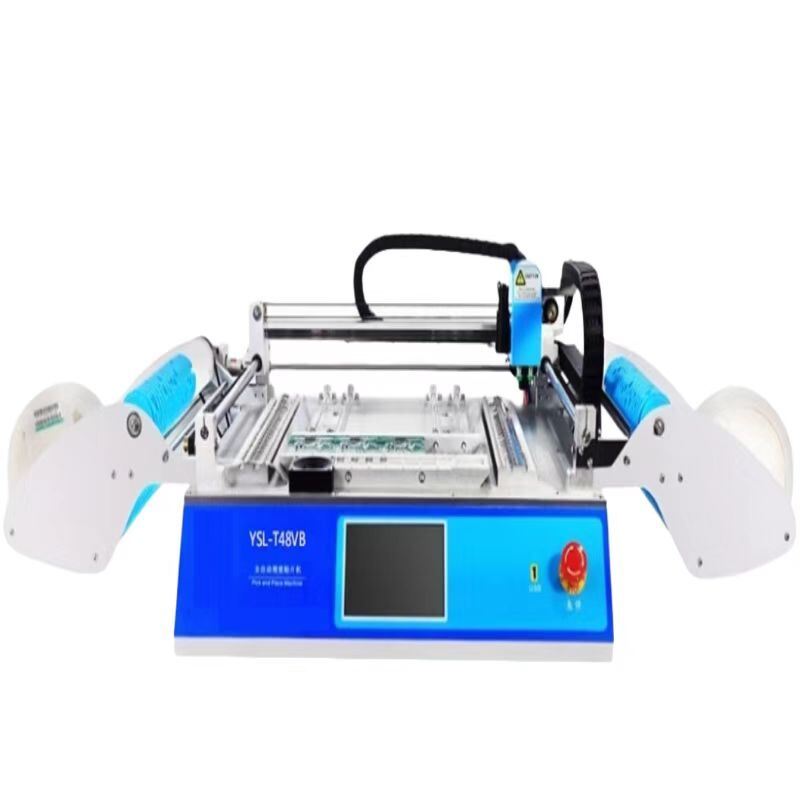

High Precision 2 Heads Desktop Vision Pick and Place Machine

Name: High Precision 2 Heads Desktop Vision Pick and Place Machine
Brand: YUSH Electronic Technology Co.,Ltd
SKU: YS-T48VB
Price: 401.00 USD
Availability: InStock

제품 상세정보

원래 장소: 중국 장쑤성

브랜드 이름: YUSH

모델 번호: YS-T48VB

지불과 운송 용어

최소 주문 수량: 1세트

가격: $2,800 / set

가장 좋은 가격 을 구하라

제품 상세정보

제품 설명

강조하다:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                2 heads desktop pick and place machine, vision pick and place machine for PCB, high precision PCB depaneling machine


무게:	50kg	치수:	1310mm(L) x 710mm(W) x 340mm(H)
전원공급장치:	AC220V(50Hz, 단상) /AC110V(60Hz, 단상),300w	공기 공급:	외부 전원 공급 장치가 필요하지 않습니다.
압력 발생:	붙박이 진공 펌프	장착 헤드 양:	2
장착 속도:	4000CPH	장착 정확도:	0.025mm
구성 요소 유형:	저항, 커패시터, 다이오드, SOT, SOP, QFP, QFN, BGA	컴퍼넌트 범위 정보:	0402~22mmX22mm
PCB 두께:	0.6mm~3.5mm	PCB 크기:	345mm(길이) x 360mm(폭)
핵심 구성요소:	PLC, 엔진, 베어링, 기어 박스, 모터	XY 드라이브:	폐쇄 루프 제어 기능을 갖춘 스테핑 모터
운영 체제:	임베디드 리눅스

무게:	50kg
치수:	1310mm(L) x 710mm(W) x 340mm(H)
전원공급장치:	AC220V(50Hz, 단상) /AC110V(60Hz, 단상),300w
공기 공급:	외부 전원 공급 장치가 필요하지 않습니다.
압력 발생:	붙박이 진공 펌프
장착 헤드 양:	2
장착 속도:	4000CPH
장착 정확도:	0.025mm
구성 요소 유형:	저항, 커패시터, 다이오드, SOT, SOP, QFP, QFN, BGA
컴퍼넌트 범위 정보:	0402~22mmX22mm
PCB 두께:	0.6mm~3.5mm
PCB 크기:	345mm(길이) x 360mm(폭)
핵심 구성요소:	PLC, 엔진, 베어링, 기어 박스, 모터
XY 드라이브:	폐쇄 루프 제어 기능을 갖춘 스테핑 모터
운영 체제:	임베디드 리눅스

High Precision 2 Heads Desktop Vision Pick and Place Machine

Advanced desktop vision pick and place machine designed for high-precision component placement in PCB assembly applications.

Product Characteristics

X, Y shaft driven by stepping motor with closed loop control, inlet synchronous belt and linear rail drive
Built-in computer with embedded Linux operating system and 7-inch touch screen
Supports 58 sets of tape feeder stack positions (8mm-44, 12mm-8, 16mm-4, 24mm-2)
Minimum component support: 0402 device, 0.5mm pin spacing chip, and 4mm height shaped elements
Maximum PCB size support: 345mm × 360mm
14 front IC bits with support for countertop custom IC tray and vibrating Fida

Technical Specifications

Dimensions	1310mm (L) × 710mm (W) × 340mm (H)
Weight	50kg
Power Supply	AC220V (50Hz, single-phase) / AC110V (60Hz, single-phase); 300W
Air Supply	No external power supply required
Vacuum Generation	Built-in vacuum pump
Mounting Head Quantity	Two
Mounting Speed	4000 CPH (under optimal conditions)
Mounting Accuracy	0.025mm
Component Types	Resistance, capacitor exhaust resistance, cylindrical diode, aluminum capacitor, SOT, SOP, QFP, QFN, BGA, etc.
Component Range	0402 to 22mm × 22mm components
PCB Thickness	0.6mm - 3.5mm
PCB Size	345mm (L) × 360mm (W) standard

Packing & Delivery

Company Profile

YUSH Electronic Technology Co., Ltd was founded in 2005 and is located in the world manufacturing city Jiangsu, specializing in professional PCB separator and PCB depanelizer electronic equipment machinery. The company has advanced production and processing equipment and an experienced development and manufacturing team, with half of them having over 10 years of experience in the electronic equipment industry.

Beginning in 2004, the company leadership invested in developing and manufacturing PCB separators and PCB depaneling machines. Since then, we have focused on product quality, safety, and innovation, producing many high-quality, stable performance, and cost-effective products that improve production yields, increase productivity, and enhance our customers' market competitiveness.

To date, we have designed different types of PCB separators and depaneling machines including manual, motor-driven, pneumatic-driven, mold punching, and milling cutter router models. Due to our good quality and reasonable pricing, our customers are located worldwide. YUSH has become one of the largest PCB separator production bases in China.

Frequently Asked Questions

Who are we?

We are based in Jiangsu, China, starting from 2014, selling to Eastern Europe (20.00%), North America (20.00%), South America (15.00%), Southern Europe (10.00%), Northern Europe (10.00%), Western Europe (10.00%), South Asia (10.00%), and Mid East (5.00%). There are about 301-500 people in our office.

How can we guarantee quality?

Always provide a pre-production sample before mass production; Always conduct final inspection before shipment.

What can you buy from us?

PCB depaneling machines, PCB separators, PCB cutting machines, PCB depaneling equipment, and V-cut machines.

Why should you buy from us instead of other suppliers?

YUSH Electronic Technology Co., Ltd. was founded in 2004 and is located in the world manufacturing city Jiangsu, specializing in professional PCB separator and PCB depanelizer electronic equipment machinery. The company has advanced production and processing equipment and experienced teams.

What services can we provide?

Accepted Delivery Terms: FOB, CIF, EXW, DDP, DDU, Express Delivery, DAF; Accepted Payment Currency: USD, EUR, JPY, CAD, AUD, HKD, GBP, CNY, CHF; Accepted Payment Type: T/T, L/C, D/P D/A, MoneyGram, Credit Card, PayPal, Western Union, Cash, Escrow; Languages Spoken: English, Chinese, Spanish, Japanese, Portuguese, German, Arabic, Korean, Hindi.
