강조하다:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                SMT solder paste stencil printer, semi-auto screen printer PCB, stencil printer for SMT


무게:	300KG	힘:	10kW
전압:	220V, 110V	모델 번호:	YS-L600
치수:	8507201650mm	플랫폼 크기:	350×400mm
PCB 크기:	320×400mm	템플릿 크기:	550×680mm
인쇄 속도:	0-8000mm/min	PCB 두께:	0-2.0mm
PCB 미세 조정:	정면/측면±10mm	플랫폼 높이:	850±20mm
반복성 정확성:	±0.02mm	위치 모드:	외부/참조 구멍
전원공급장치:	1PAC220V 50/60Hz

무게:	300KG
힘:	10kW
전압:	220V, 110V
모델 번호:	YS-L600
치수:	8507201650mm
플랫폼 크기:	350×400mm
PCB 크기:	320×400mm
템플릿 크기:	550×680mm
인쇄 속도:	0-8000mm/min
PCB 두께:	0-2.0mm
PCB 미세 조정:	정면/측면±10mm
플랫폼 높이:	850±20mm
반복성 정확성:	±0.02mm
위치 모드:	외부/참조 구멍
전원공급장치:	1PAC220V 50/60Hz

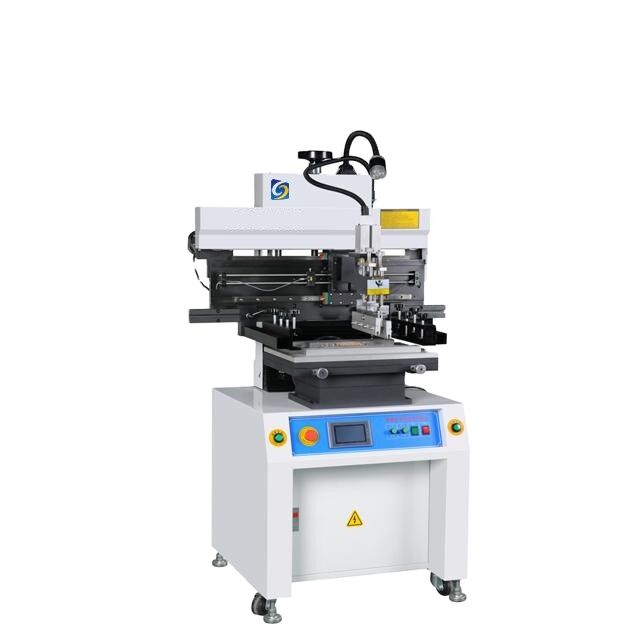

Semi-auto SMT solder paste printer /Screen printer / Stencil Printer

Semi-Automatic SMT Solder Paste Printer / Screen Printer / Stencil Printer

Key Features

Precision guide rail and imported motor drive for blade seat conversion with high accuracy
45-degree rotating printing scraper for easy stencil and squeegee cleaning and replacement
Adjustable blade positioning for optimal printing placement
Fixed groove printing platen with PIN system for easy single and double-sided printing
Movable steel mesh with X, Y, Z fine adjustment capabilities
Multiple printing methods including one-way and two-way operation
Automatic counting function for production output statistics
Adjustable blade angle compatible with both steel blades and rubber scrapers
Touch screen with adjustable screen saver function to extend display life
Adjustable printing speed with real-time display

Technical Specifications

Model	YS-L600
Dimensions	850×8720×1650mm
Platform Size	350×400mm
PCB Size	320×400mm
Template Size	550×680mm
Printing Speed	0-8000mm/min
PCB Thickness	0-2.0mm
PCB Fine Tuning Range	Front/side ±10mm
Power Supply	1PAC220V 50/60HZ
Platform Height	850±20mm
Repeatability Precision	±0.02mm
Positioning Mode	Outside/Reference Hole
Weight	Approx. 300Kg
