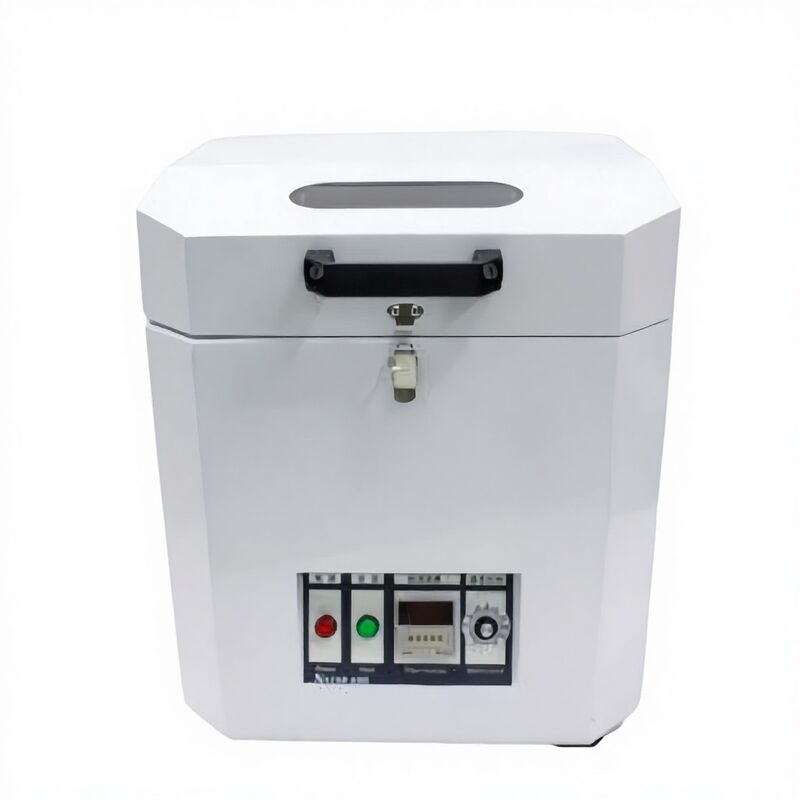

SMT Tin Cream Mixer Fully Automatic Good Quality Tin Paste Mixer Machine

제품 상세정보

원래 장소: 중국 장쑤성

브랜드 이름: YUSH

지불과 운송 용어

최소 주문 수량: 1세트

가격: $2,500-3,000 / set

가장 좋은 가격 을 구하라
강조하다:

fully automatic SMT tin cream mixer

,

PCB depaneling tin paste mixer

,

SMT tin paste mixer machine

무게:
40KG
작동 전압:
AC220V(60HZ) 40W
기본 속도:
1400 rpm
보조 속도:
400 rpm
기계 크기:
410*410*490MM(WDH)
순중량:
40KG
총중량:
45kg
기계 길이:
410mm
모델:
J40
시간 설정:
0.1~9.9분, 회당 0.1분
핵심 구성요소:
모터, 펌프
전력 소비:
40W
빈도:
60Hz
회전 각도:
45 도
평형추:
500g
무게:
40KG
작동 전압:
AC220V(60HZ) 40W
기본 속도:
1400 rpm
보조 속도:
400 rpm
기계 크기:
410*410*490MM(WDH)
순중량:
40KG
총중량:
45kg
기계 길이:
410mm
모델:
J40
시간 설정:
0.1~9.9분, 회당 0.1분
핵심 구성요소:
모터, 펌프
전력 소비:
40W
빈도:
60Hz
회전 각도:
45 도
평형추:
500g
SMT Tin Cream Mixer Fully Automatic Good Quality Tin Paste Mixer Machine
Fully Automatic SMT Tin Cream Mixer
This high-quality tin paste mixer machine ensures precise mixing of solder paste for optimal SMT production results.
Usage Instructions
For optimal performance: When stirring two cans simultaneously, ensure weights are roughly equal (difference ≤50g). For single can operation, use the provided 500g balance weight or equivalent counterweight. Press the power switch to stop operation. The machine automatically stops when the cover is opened during operation.
SMT Tin Cream Mixer Fully Automatic Good Quality Tin Paste Mixer Machine 0
Product Maintenance
Regular maintenance extends the service life of this precision mechanical equipment:
  • Keep the machine clean as it uses fully enclosed bearings
  • Replace the rotation device belt promptly when damaged (non-durable component)
Safety Precautions
  • Never open the machine cover or leave it unlocked during operation
  • Wait for complete machine stop before opening the upper cover
  • Place machine on stable, solid surface as slight vibration occurs during operation
  • Immediately power off and inspect if excessive vibration occurs
Technical Specifications
Operating Voltage AC220V (60 HZ) 40W
Operating Speed Primary: 1400 RPM, Secondary: 400 RPM
Machine Dimensions 410 × 410 × 490mm (W×D×H)
Net/Gross Weight 40kg / 45kg
Time Setting 0.1-9.9 minutes (0.1 min increments), 10-30 minutes (1.0 min increments)
Key Features
Utilizing rotary centrifugal force with 45-degree axis rotation, this mixer creates a whirlwind funnel mixing action that softens paste, eliminates clumping, and achieves optimal viscosity for excellent printing and welding performance.
  • No need to remove tin cream before mixing
  • Adjustable mixing time and speed with special control circuit
  • 45-degree placement prevents paste attachment to tank cover
  • Smooth operation with low noise, natural temperature return, and bubble removal
  • Convenient, safe operation without opening tin paste tank
  • Universal clamp fits various tin paste tank packaging
  • No moisture issues or tin powder shape damage
  • 220V power supply with safety protection devices
Operation Procedure
Step 1:
Release latch, open machine cover, and confirm no foreign objects inside.
SMT Tin Cream Mixer Fully Automatic Good Quality Tin Paste Mixer Machine 1
Step 2:
Remove tin paste and 500g balance weight.
SMT Tin Cream Mixer Fully Automatic Good Quality Tin Paste Mixer Machine 2
Step 3:
Place tin paste and balance weight in tank (cancel balance weight when mixing 2 bottles).
SMT Tin Cream Mixer Fully Automatic Good Quality Tin Paste Mixer Machine 3
Step 4:
Manually rotate tin paste jar to confirm no collision, close cover, and power on.
SMT Tin Cream Mixer Fully Automatic Good Quality Tin Paste Mixer Machine 4
Step 5:
Set mixing time (recommended: 5 minutes). Time controller: H=hours, M=minutes, S=seconds.
SMT Tin Cream Mixer Fully Automatic Good Quality Tin Paste Mixer Machine 5
Step 6:
Press start key (indicator light on), machine operates at high speed until automatic stop.
SMT Tin Cream Mixer Fully Automatic Good Quality Tin Paste Mixer Machine 6
Step 7:
After completion, press power switch to turn off power supply.
