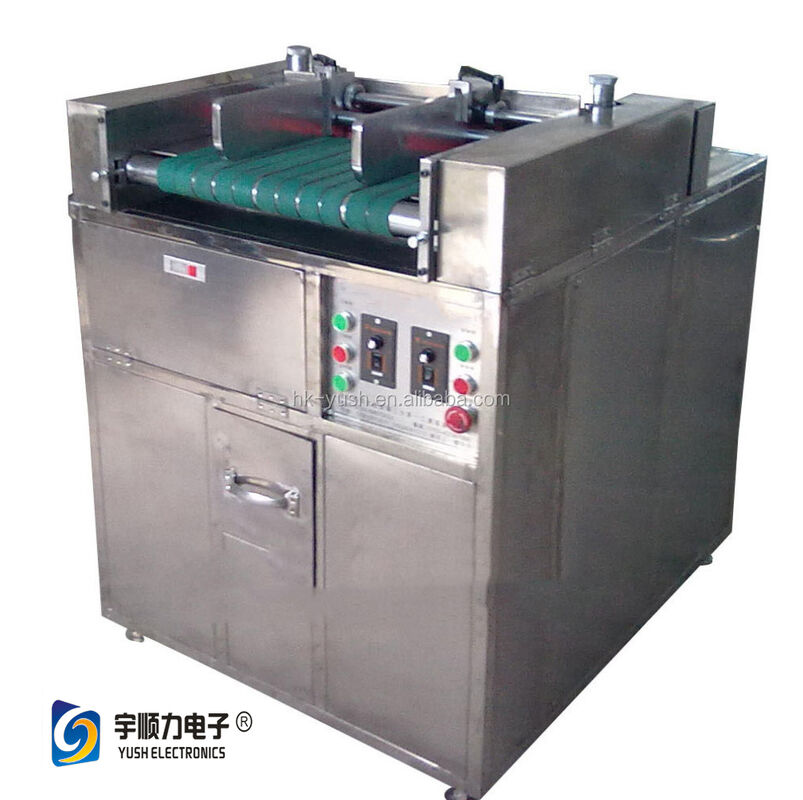

Automatic PCB V groove Machine . V-cut Cutting Machine

제품 상세정보

원래 장소: 중국 장쑤성

브랜드 이름: YUSH

지불과 운송 용어

최소 주문 수량: 1 시트

가격: $10,000 / sheet

가장 좋은 가격 을 구하라

제품 상세정보

제품 설명

강조하다:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                Automatic PCB V groove cutting machine, PCB depaneling V-cut machine, V-cut PCB depaneling equipment


전압:	220V	무게:	185 킬로그램
힘:	3.7kw	절단 폭:	종 방향 70mm
너비:	380mm	두께 범위:	0.6 ~ 2.5 mm
절단 속도:	12mm/분	총 블레이드:	상단 10pcs, 하단 10pcs
모델 번호:	YSV-4A	최대 두께:	3.2 밀리미터
알루미늄판 용량:	V≥5 피트	섬유판 용량:	V≥8 피트
스핀들 모터 전력:	3kw	치수:	1200mm x 980mm x 1400mm
기계 중량:	145kg

전압:	220V
무게:	185 킬로그램
힘:	3.7kw
절단 폭:	종 방향 70mm
너비:	380mm
두께 범위:	0.6 ~ 2.5 mm
절단 속도:	12mm/분
총 블레이드:	상단 10pcs, 하단 10pcs
모델 번호:	YSV-4A
최대 두께:	3.2 밀리미터
알루미늄판 용량:	V≥5 피트
섬유판 용량:	V≥8 피트
스핀들 모터 전력:	3kw
치수:	1200mm x 980mm x 1400mm
기계 중량:	145kg

Automatic PCB V groove Machine . V-cut Cutting Machine

Automatic PCB V Groove Machine - V-Cut Cutting Machine

Professional manual V-cut machine for PCB depaneling and scoring applications, designed for precision cutting of printed circuit boards.

Key Specifications

Cutting Width: Longitudinal 70mm; Wide: 380mm

Material Thickness: 0.6-2.5 mm

Cutting Speed: 12 mm/min

Total Blades: Upper 10 pieces, Lower 10 pieces

Operation Guidelines

V-CUT aluminum base plate conveying shaft transmission speed adjustment range: 20-30. Thicker plates require slower speeds; thinner plates can use faster speeds. For standard 1.6mm plate thickness, recommended speed is approximately 25.
V-CUT aluminum base plate conveying speed determines cutter knife shaft speed. Standard plates can be processed at slower speeds.
V-CUT knives are not suitable for standard plates when cutting aluminum plates. Aluminum plates with V-cut knife flash can also be used for standard V-cut applications.
When cutting aluminum plates, cooling water or alcohol must be used for cooling.

YSV-4A Aluminum V-Cut Machine Technical Details

480 V-CUT aluminum plate cutting machine designed for high-performance PCB depaneling.

Specification	Details
Model Number	YSV-4A
Cutting Width	75mm wide vertical, 480mm horizontal
Material Thickness	0.8-3.2 mm
Cardboard Capacity	≥10 cuts per pass (10 upper and lower knives)
Aluminum Plate Capacity	≥5 cuts per pass (4 upper and lower knives)
Fiberboard Capacity	≥8 cuts per pass (8 upper and lower knives)
Cutting Speed	8 m/min
Motor Specifications	3KW inverter, 3.7KW plastic shaft motor, 120W crate motor, 60W closed motor
Machine Dimensions	1200mm × 980mm × 1400mm (W × D × H)
Weight	145KG
Included Accessories	Washer set, V-CUT knife (4), Shield bearing (10), Wrench set, Hex key set, Blades turret (1)

Packaging & Shipping

Our Services

Company Information

YUSH Electronic Technology Co., Ltd is a professional manufacturer and trader specializing in the research, development, and production of PCB depaneling equipment, hot bar welding machines, and touch screen film sticking machines. Located in Dongguan City, Guangdong Province, China, we benefit from convenient transportation access. All our products comply with international quality standards and are highly regarded in various global markets. We welcome custom orders and look forward to establishing successful business relationships with clients worldwide.

Frequently Asked Questions

Who are we?

Based in Jiangsu, China since 2014, we serve global markets including Eastern Europe (20%), North America (20%), South America (15%), Southern Europe (10%), Northern Europe (10%), Western Europe (10%), South Asia (10%), and Mid East (5%). Our organization employs 301-500 professionals.

How do we guarantee quality?

We provide pre-production samples before mass production and conduct final inspections before shipment to ensure consistent quality standards.

What products do we offer?

PCB depaneling machines, PCB separators, PCB cutting machines, PCB depaneling equipment, and V-cut machines.

Why choose us over other suppliers?

Founded in 2004 and located in Jiangsu, the world's manufacturing hub, YUSH Electronic Technology specializes in professional PCB separator and depanelizer electronic equipment machinery. We maintain advanced production and processing equipment with experienced technical teams.

What services do we provide?

Delivery Terms: FOB, CIF, EXW, DDP, DDU, Express Delivery, DAF
Payment Currencies: USD, EUR, JPY, CAD, AUD, HKD, GBP, CNY, CHF
Payment Methods: T/T, L/C, D/P D/A, MoneyGram, Credit Card, PayPal, Western Union, Cash, Escrow
Languages: English, Chinese, Spanish, Japanese, Portuguese, German, Arabic, Korean, Hindi
