Laser Welding Machine - Board Soldering of Special Components Device

제품 상세정보

원래 장소: 중국 광둥

브랜드 이름: YUSH

지불과 운송 용어

최소 주문 수량: 1세트

가격: $5,800 / set

가장 좋은 가격 을 구하라

제품 상세정보

제품 설명

강조하다:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                laser welding machine for PCB, PCB depaneling laser welder, special components soldering device


무게:	500KG	레이저 파장:	808±8nm
섬유 직경:	400um / 600um	섬유 출력 전력:	30±6W
섬유 커넥터:	YS-905	수치 조리개:	0.22
정격 출력:	500VA	표시레이저:	635±6nm, 5mw
AC 전원 공급 장치:	AC 220V±10%50HZ, 15A	주변 온도:	10-35°C
상대습도:	≤80%RH	기압:	86-106KPA
공기 먼지:	≤0.01g/m3	핵심 구성요소:	PLC, 기어박스, 모터, 펌프
CCD 배율:	20x

무게:	500KG
레이저 파장:	808±8nm
섬유 직경:	400um / 600um
섬유 출력 전력:	30±6W
섬유 커넥터:	YS-905
수치 조리개:	0.22
정격 출력:	500VA
표시레이저:	635±6nm, 5mw
AC 전원 공급 장치:	AC 220V±10%50HZ, 15A
주변 온도:	10-35°C
상대습도:	≤80%RH
기압:	86-106KPA
공기 먼지:	≤0.01g/m3
핵심 구성요소:	PLC, 기어박스, 모터, 펌프
CCD 배율:	20x

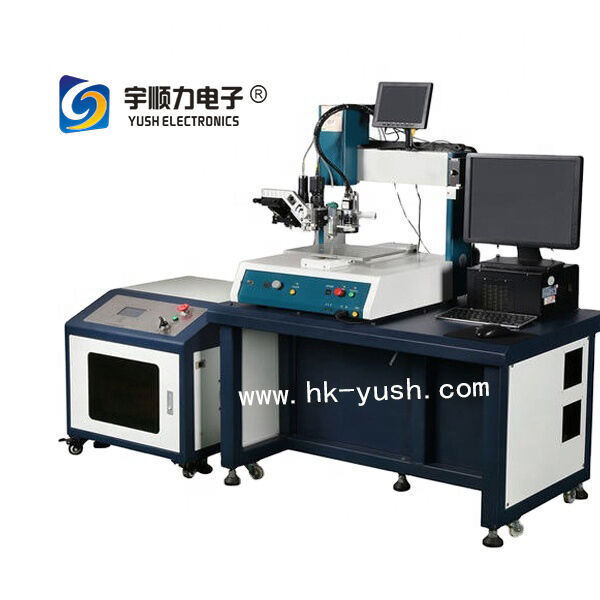

Laser Welding Machine - Board Soldering of Special Components Device

Professional laser welding system designed for precision board soldering of special components with integrated visual positioning and automated functionality.

Technical Specifications

Laser wavelength	808±8nm
Fiber terminal output power	30±6W
Fiber diameter	400um / 600um
Fiber Optic Connector	YS-905
Numerical aperture	0.22
Rated power	500VA
Indication laser	635±6nm, 5mw
AC power supply	AC 220V±10%50HZ, 15A
Ambient temperature	10-35 °C
Relative humidity	≤80%RH
Atmospheric pressure	≤86-106Kpa
Environmental cleanliness air dust	≤0.01g/m³

Key Features

Professionally designed welding system compatible with visual positioning CCD
Integrated solder paste and laser functions for comprehensive laser and solder paste integration
Advanced visual positioning CCD with professional algorithm for complete and accurate positioning
Touch screen control with adjustable waveforms suitable for precision welding applications
Laser power supply with current feedback control for stable output laser energy
High-quality imported laser from the United States
Single mode fiber output with excellent beam quality
20x CCD display for clear monitoring of the welding process
Fully automatic operation with automated loading and unloading for unmanned operation

Applications

High-density interconnect chips, ICs, chip components, connectors, headphone plugs, cell phone speakers, energy-saving lamps, FPC flexible circuit boards, cell phone cameras, and special components for board soldering.
