Small Size Engraving and Machine for Pcb Cutting -YSVC-650

제품 상세정보

원래 장소: 중국

브랜드 이름: YUSH

지불과 운송 용어

최소 주문 수량: 1세트

가격: $28,000 / set

가장 좋은 가격 을 구하라

제품 상세정보

제품 설명

강조하다:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                small PCB depaneling machine, engraving machine for PCB cutting, YSVC-650 PCB cutting machine


무게:	3500kg	힘:	10kW
전압:	220V/380V	Y 절삭 속도:	0 ~ 100mm/초
스핀들 속도:	50000RPM	공기의 압력:	4kg/cm2
호스트 차원:	700mm * 900mm * 1200mm	정확성:	± 0.01mm
Z축 스트로크:	50mm	절단 정확도:	±0.1mm
전력 소비:	2kVA	집진기 전압:	380V 1.5P
집진기 치수:	680mm * 400mm * 900mm	PCB 최대 크기:	450mm * 500mm
XYZ 드라이브:	AC 서보 모터

무게:	3500kg
힘:	10kW
전압:	220V/380V
Y 절삭 속도:	0 ~ 100mm/초
스핀들 속도:	50000RPM
공기의 압력:	4kg/cm2
호스트 차원:	700mm * 900mm * 1200mm
정확성:	± 0.01mm
Z축 스트로크:	50mm
절단 정확도:	±0.1mm
전력 소비:	2kVA
집진기 전압:	380V 1.5P
집진기 치수:	680mm * 400mm * 900mm
PCB 최대 크기:	450mm * 500mm
XYZ 드라이브:	AC 서보 모터

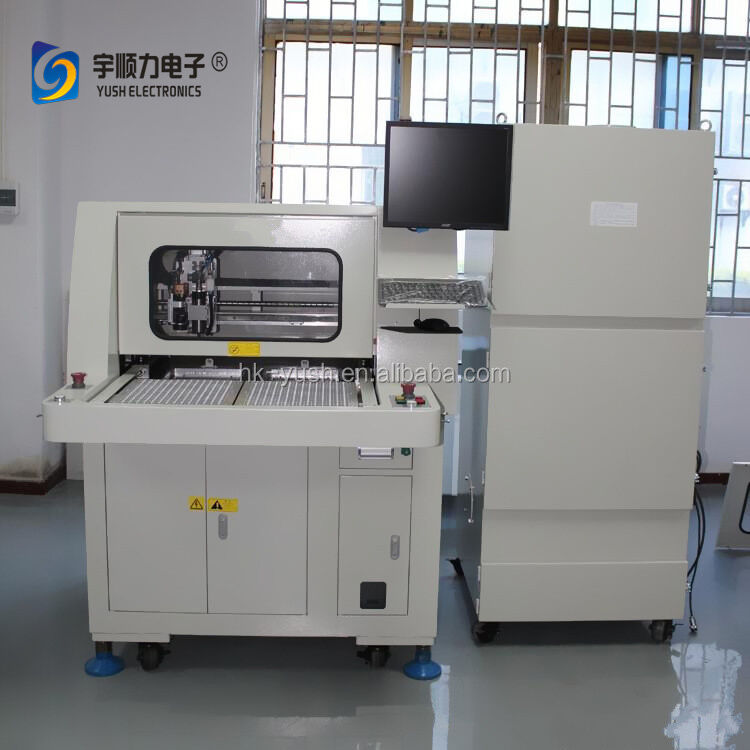

Small Size Engraving and Machine for Pcb Cutting -YSVC-650

Small Size Engraving and Machine for PCB Cutting - YSVC-650

Product Overview

The YSVC-650 PCB cutting machine is designed for precision depaneling of printed circuit boards. This automated gong knife scoring system eliminates common production issues while maintaining high accuracy and efficiency.

Key Benefits

Prevents artificial tin cracks and component damage during separation
Eliminates stress problems caused by mechanical force generation
Suitable for various housing types and irregular PCB board shapes (straight lines, arcs, L-types, etc.)
X, Y, Z-axis integration with high-speed 60,000 rpm spindle motor

Machine Features

Designed for puzzle and semi-finished product division
High cutting speed with exceptional precision
Simple operation and user-friendly interface
Quick tool change capability with minimal setup adjustment
High-intensity dust collection system maintains PCB and surface cleanliness
Minimal stress cutting mode for optimal board integrity

Technical Specifications

Cutting Speed	0 - 100mm/s
Machine Accuracy	± 0.01mm
Z-axis Stroke	50mm
Control System	X, Y, Z control or industrial PC with touch screen
Drive System	AC servo motor for X, Y, Z axes
Cutting Accuracy	± 0.1mm
Spindle Speed	MAX 50,000 rpm
Host Voltage	220V 50/60Hz
Air Pressure	4kg/cm² or higher
Power Consumption	2KVA
Dust Collection	Integrated dust collection system
Dust Collector Voltage	380V 1.5P
Host Dimensions	700mm × 900mm × 1200mm
Dust Collector Dimensions	680mm × 400mm × 900mm

Optional Features

CCD vision system for enhanced precision
Comprehensive dust collection (above and below)
Multiple PCB board size compatibility: 280mm × 340mm, 300mm × 400mm, 450mm × 500mm
Touch screen and hand-knitted or PC operation options
