Name: Two-slide Separator for PCB Board Cutting-YSVC-650
Brand: YUSH Electronic Technology Co.,Ltd
SKU: YSVC-650
Price: 9 USD
Availability: InStock

제품 상세정보

원래 장소: 중국 장쑤성

브랜드 이름: YUSH

모델 번호: YSVC-650

지불과 운송 용어

최소 주문 수량: 1세트

가격: $9,000 / set

가장 좋은 가격 을 구하라

제품 상세정보

제품 설명

강조하다:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                PCB depaneling machine two-slide separator, YSVC-650 PCB board cutter, PCB separator with warranty


무게:	600kg	치수:	1220mm * 1450mm * 1420mm
높이 오프셋:	60 ~ 110mm	PCB 크기:	322mm * 322mm
PCB 두께:	5mm	스핀들 속도:	50000rpm/분
절단 속도:	100mm/초	구동 속도:	3000mm/초
절단 정밀도:	0.01mm	축 정밀도:	0.001mm
힘:	2.2KW AC380V	공기의 압력:	2~5KG/cm2
모터 파워:	400W	진공 파워:	2.2KW AC 380V
작업 영역:	680mm * 360mm * 50mm

무게:	600kg
치수:	1220mm * 1450mm * 1420mm
높이 오프셋:	60 ~ 110mm
PCB 크기:	322mm * 322mm
PCB 두께:	5mm
스핀들 속도:	50000rpm/분
절단 속도:	100mm/초
구동 속도:	3000mm/초
절단 정밀도:	0.01mm
축 정밀도:	0.001mm
힘:	2.2KW AC380V
공기의 압력:	2~5KG/cm2
모터 파워:	400W
진공 파워:	2.2KW AC 380V
작업 영역:	680mm * 360mm * 50mm

Two-slide Separator for PCB Board Cutting-YSVC-650

Two-slide Separator for PCB Board Cutting - YSVC-650

Professional two-slide separator designed for precision PCB board cutting and depaneling applications.

Machine Specifications

Physical Dimensions

Dimensions (W × D × H): 1220mm × 1450mm × 1420mm

Height Offset: 60-110mm

Manipulator System

Motor Type: JiaBao series

Positioning Repeatability: 0.001mm

Axis Working Area (Max): 680mm × 360mm × 50mm

Work Station

PCB Fixation: Standard, specialization

PCB Loading/Unloading: Manual

PCB Size (Max): 322mm × 322mm

PCB Thickness (Max): 5mm

Fixturing System

Rigidity Fixturing: Standard

Fixturing Fixation: Mechanical

Spindle Motor

Power: 400W

Spindle Speed: 50,000 rpm/min

Protection: Self / Wind cooling

Cutter Change: Specialization

Routing Capability

Cutting Speed (Max): 100mm/s

Driving Speed (Max): 3000mm/s

Cutting Precision: 0.01mm

Vacuum System

Vacuum Power: 2.2KW AC 380V

Vacuum Plumb: Standard

Utilities

Power: 2.2KW AC380V

Air Supply Pressure: 2-5 KG/cm²

Programming & Control Features

Program Editing

Inline program editing
Function edit: Line, arc, circular, U-curve
Program storage: HDD

Vision & Automation

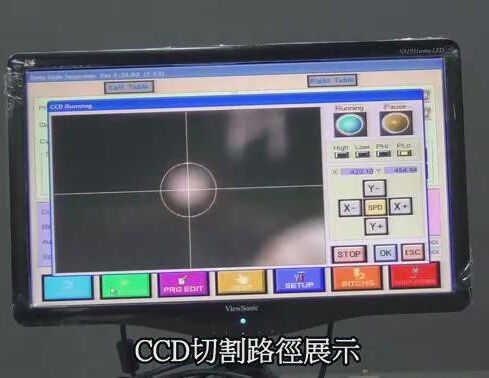

SONE color CCD vision system
Automatic milling cutter offset
Automatic vacuum setup

Operation Monitoring

Machine state indicator
Automatic tool life detection and usage time testing
Motor protection: Overheating, overload, low voltage protection
Motor overload checking: Overload, line normal, low voltage protection
Automatic tool usable time detection
Data statistics: Separate board model, separating count, diverse counting methods
Error recording: Software automatically records all alarms and machine memory

Accuracy Specifications

Axis Precision: 0.001mm

Cutting Precision: 0.1mm

Safety Features
