Fiber Co2 UV Laser Marking Machine

제품 상세정보

원래 장소: 중국 광둥

브랜드 이름: YUSH

지불과 운송 용어

최소 주문 수량: 1세트

가격: $50,000-100,000 / set

가장 좋은 가격 을 구하라

제품 상세정보

제품 설명

강조하다:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                Fiber CO2 laser marking machine, UV laser PCB depaneling machine, CO2 laser marker for PCBs


무게:	400kg	힘:	10kW
전압:	220V/110V	레이저 유형:	UV 레이저, 녹색 레이저, 파이버 레이저, CO2 레이저
레이저 Z축:	수동(자동 옵션)	PCB 크기:
차원:	L1000 * W1200 * H1500mm	공기의 압력:	0.5~0.6MPa
파장:	UV:355nm, 녹색:532nm, 섬유:1064nm, CO2:10640nm	레이저 파워:	UV:3W(5W 옵션), 녹색:7W, 섬유:20W, CO2:30W
마킹 범위:	<380mm*320mm	마킹 속도:	<7000mm>
마킹 정밀도:	±0.05mm	최소 문자 높이:	0.1mm ~0.4mm
PCB 두께:	0.5mm-6mm

무게:	400kg
힘:	10kW
전압:	220V/110V
레이저 유형:	UV 레이저, 녹색 레이저, 파이버 레이저, CO2 레이저
레이저 Z축:	수동(자동 옵션)
PCB 크기:
차원:	L1000 * W1200 * H1500mm
공기의 압력:	0.5~0.6MPa
파장:	UV:355nm, 녹색:532nm, 섬유:1064nm, CO2:10640nm
레이저 파워:	UV:3W(5W 옵션), 녹색:7W, 섬유:20W, CO2:30W
마킹 범위:	<380mm*320mm
마킹 속도:	<7000mm>
마킹 정밀도:	±0.05mm
최소 문자 높이:	0.1mm ~0.4mm
PCB 두께:	0.5mm-6mm

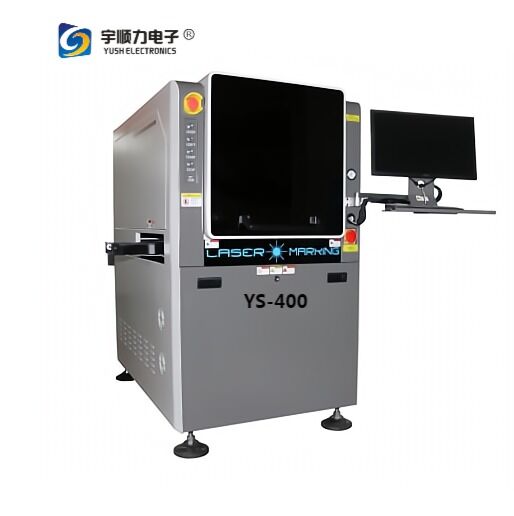

Fiber Co2 UV Laser Marking Machine

Fiber CO2 UV Laser Marking Machine

This industrial laser marking unit is designed for precision marking of text, barcodes, 2D codes, and graphics on PCBs. YUSH laser marking machines are primarily used in the PCB industry and can seamlessly integrate with SMT assembly lines while supporting online data transmission and MES system information feedback.

Key Features

Stable performance with CO2, fiber, green, and UV laser options
High-speed vibrating mirror system for precision and stability
Fast and accurate CCD positioning with automatic recognition
User-friendly software interface with powerful editing capabilities
Automatic QR code reading with data saving and error alerting
No consumables required, environmentally friendly, maintenance-free
Anti-reprinting function prevents duplicate marking
Seamless integration with SMT lines and MES systems

Technical Specifications

Item	YS-400	YS-510
Laser Type	UV laser, Green laser, Fiber laser, CO2 laser
Wave Length	UV laser: 355nm, Green laser: 532nm, Fiber laser: 1064nm, CO2 laser: 10640nm
Laser Power	UV laser: 3W(5W Option), Green laser: 7W, Fiber laser: 20W, CO2 laser: 30W
Laser Z-axis Lifting	Manual (Automatic is Option)
PCB Flip Function	Inside PCB Flip	N/A(Outside Flipper)
PCB Size	<L400mm × W320mm	<L510mm × W460mm
Marking Range	<380mm×320mm	<460mm×420mm
PCB Size Range	L50×W80mm ~ L450×W350mm; Thickness 0.5mm-6mm
Marking Speed	<7000mm/s
Marking Precision	±0.05mm
Minimum Character Height	0.1mm ~ 0.4mm
Reading Code Function	Automatic QR code reading with data saving and error alerting
Dimensions	L1000 × W1200 × H1500 mm
Air Pressure	0.5~0.6Mpa

Packaging & Shipping

Our Services

Company Information

YUSH Electronic Technology Co., Ltd is a specialized manufacturer and trader focused on the research, development, and production of PCB depaneling equipment, hot bar welding machines, and touch screen film sticking machines. Located in Dongguan City, Guangdong Province, China, with convenient transportation access, all our products comply with international quality standards and are appreciated in markets worldwide. We welcome custom orders and look forward to establishing successful business relationships with new clients globally.

Frequently Asked Questions

Who are we?

We are based in Jiangsu, China, established in 2014, serving markets including Eastern Europe (20%), North America (20%), South America (15%), Southern Europe (10%), Northern Europe (10%), Western Europe (10%), South Asia (10%), and Mid East (5%). Our office employs 301-500 people.

How can we guarantee quality?

We provide pre-production samples before mass production and conduct final inspections before shipment to ensure quality standards.

What can you buy from us?

PCB depaneling machines, PCB separators, PCB cutting machines, PCB depaneling equipment, and V-cut machines.

Why should you buy from us instead of other suppliers?

YUSH Electronic Technology Co., Ltd. was founded in 2004 and is located in Jiangsu, a world manufacturing hub. We specialize in professional PCB separator and depanelizer electronic equipment machinery with advanced production facilities and experienced technical teams.

What services can we provide?

Accepted Delivery Terms: FOB, CIF, EXW, DDP, DDU, Express Delivery, DAF
Accepted Payment Currency: USD, EUR, JPY, CAD, AUD, HKD, GBP, CNY, CHF
Accepted Payment Types: T/T, L/C, D/P D/A, MoneyGram, Credit Card, PayPal, Western Union, Cash, Escrow
Languages Spoken: English, Chinese, Spanish, Japanese, Portuguese, German, Arabic, Korean, Hindi
