Name: Pcb Guillotine Machine . Pcb Lead Cutter. Pcb Lead Cutting Machine
Brand: YUSH Electronic Technology Co.,Ltd
SKU: YSVC-3
Price: 10 USD
Availability: InStock

제품 상세정보

원래 장소: 중국 장쑤성

브랜드 이름: YUSH

모델 번호: YSVC-3

지불과 운송 용어

최소 주문 수량: 1세트

가격: $10,000 / set

가장 좋은 가격 을 구하라

제품 상세정보

제품 설명

강조하다:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                PCB guillotine lead cutter, PCB depaneling cutting machine, PCB lead trimming machine


무게:	85KG	힘:	40W
모델:	YSVC-3	패키지 크기:	780mmx500mmx620mm
두께를 최소화하십시오:	0.3-3.5mm	기계 중량:	185kg
최대 디패널링 길이:	제한 없는	맥스 구성장치 높이:	50mm
민 판 두께:	0.3mm	맥스 판 두께:	2.0mm
부품 정리:	1mm	제어방식:	공압 구동
조작방법:	풋 페달	핵심 구성요소:	모터
디패널링 스트레스:	굽힘/인장 없음

무게:	85KG
힘:	40W
모델:	YSVC-3
패키지 크기:	780mmx500mmx620mm
두께를 최소화하십시오:	0.3-3.5mm
기계 중량:	185kg
최대 디패널링 길이:	제한 없는
맥스 구성장치 높이:	50mm
민 판 두께:	0.3mm
맥스 판 두께:	2.0mm
부품 정리:	1mm
제어방식:	공압 구동
조작방법:	풋 페달
핵심 구성요소:	모터
디패널링 스트레스:	굽힘/인장 없음

Pcb Guillotine Machine . Pcb Lead Cutter. Pcb Lead Cutting Machine

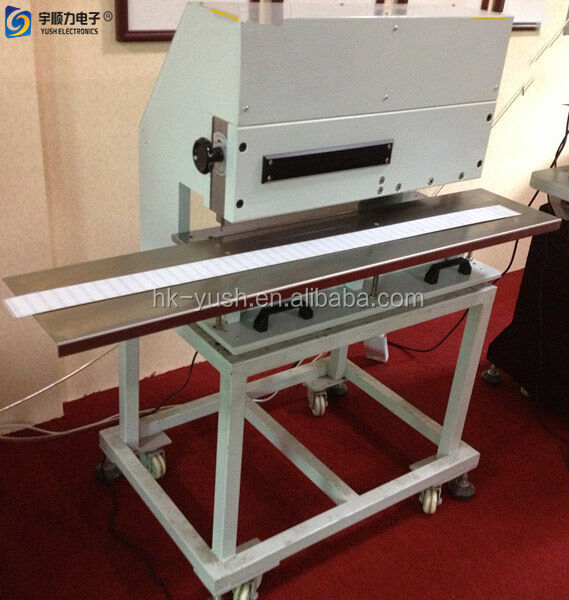

PCB Guillotine Machine - PCB Lead Cutting Machine

YSVC-3 Model - Professional PCB depaneling solution for efficient and safe board separation

Technical Specifications

Model	YSVC-3
The Longest Cut	Unlimited
Package Size	780mm x 500mm x 620mm
Cut Thickness	0.3-3.5mm
Machine Weight	185Kg

Application Scope

Cut any length metal board safely and easily
Separates long boards directly without turning direction
Separates boards up to 2.0mm thick metal board
Shears boards safely with parts as close as 1mm to the score line, including ceramic capacitors
Operator foolproof design - panels cannot be inserted into knives except on the score line
Handles high components up to 50mm
Avoids bow waves that can occur with round knives
Easy adjustment of distance between knives

Key Advantages

Maximum PCB depaneling length is unlimited
Depaneling PCB without bending and tension stress
Safety use with easy operation
Depaneling process without vibrations

Technical Features

Designed to depanel pre-scored PCB carefully without bending and tension stress
Even sensitive SMD components like ceramic capacitors remain undamaged during depaneling
Thin boards down to 0.3mm can be worked safely
Vibration-free depaneling process
Pneumatic-driven and electromagnetic valve control method
Foot pedal operation for depaneling control
Accommodates components up to 50mm near V-groove
Easy adjustment of PCB insertion gap
