Deburring Pcb Cutter Machine . Pcb Manufacturing Equipment

제품 상세정보

원래 장소: 중국 장쑤성

브랜드 이름: YUSH

지불과 운송 용어

최소 주문 수량: 1세트

가격: $1,000-5,000 / set

가장 좋은 가격 을 구하라

제품 상세정보

제품 설명

강조하다:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                PCB depaneling deburring machine, PCB cutter manufacturing equipment, PCB depaneling machine with warranty


무게:	180kg	힘:	10kW
전압:	110V/220V	최대 길이:	330mm
절단 두께:	0.3-3.5mm	작동 공기압:	0.5-0.7mpa
크기:	620230400mm	무게:	165kg
최대 구성 요소 높이:	70mm	최소 거리:	0.5mm
패키지 크기:	720mm300mm440mm	두께 범위:	0.50-3.5mm
핵심 구성요소:	PLC, 모터	보드 길이:	300mm/400mm
공기의 압력:	0.4-0.6Mpa

무게:	180kg
힘:	10kW
전압:	110V/220V
최대 길이:	330mm
절단 두께:	0.3-3.5mm
작동 공기압:	0.5-0.7mpa
크기:	620230400mm
무게:	165kg
최대 구성 요소 높이:	70mm
최소 거리:	0.5mm
패키지 크기:	720mm300mm440mm
두께 범위:	0.50-3.5mm
핵심 구성요소:	PLC, 모터
보드 길이:	300mm/400mm
공기의 압력:	0.4-0.6Mpa

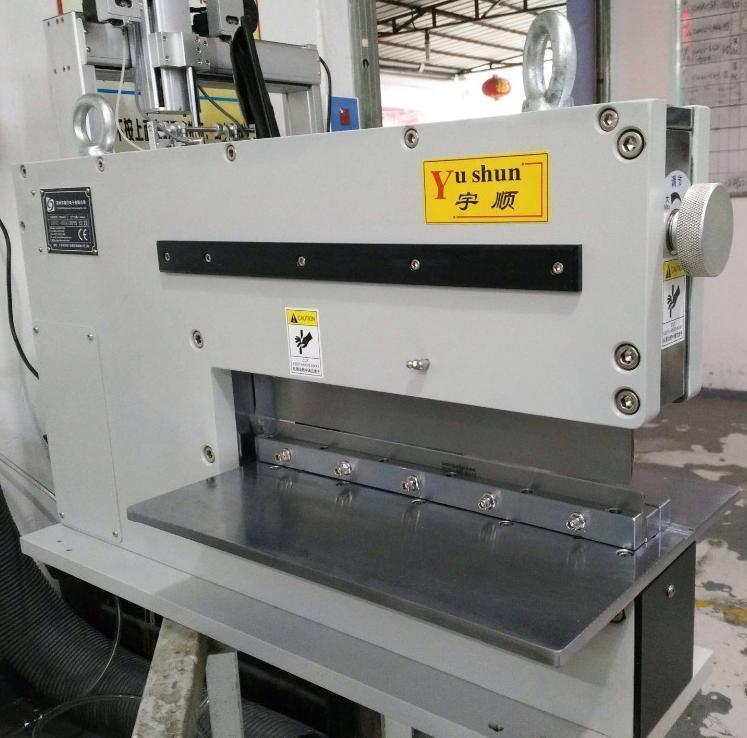

Deburring Pcb Cutter Machine . Pcb Manufacturing Equipment

Deburring PCB Cutter Machine - PCB Manufacturing Equipment

YSVC-330 & YSVC-220 Models

Professional deburring PCB cutter machines designed for efficient PCB manufacturing operations.

Key Advantages

Easy maintenance and operation
Thin PCBs down to 0.3mm can be sheared safely
Shearing process without vibrations due to pneumatic drive unit

Technical Specifications

Max Length: 330mm (Custom sizes available)
Cutting Thickness: 0.3-3.5mm
Voltage and Power: 110V/220V
Working Air Pressure: 0.5-0.7Mpa
Speed: Dependent on operator skill level
Size: 620×230×400mm
Weight: 165kg

Advanced Features

Pneumatically driven with electromagnetic valve control
Vibration-free shearing process through pneumatic drive unit
Safe shearing of PCBs with sensitive SMD components and capacitors
Foot pedal operation for precise control
Accommodates components up to 70mm near V-groove
Minimum 0.5mm clearance between V-groove and electronic components
Easy gap adjustment via front-mounted knob

Straight Knife PCB Separator

Pneumatically driven and electrically controlled straight knife separator designed to carefully separate pre-scored panel boards without bending or tension stress. Even sensitive SMD-components like ceramic capacitors remain undamaged during separation. Special knife design safely handles boards with high components placed close to edges.

Separator Features

Vibration-free process prevents damage to precision PCBs
Easy gap adjustment via top-mounted knob with low friction design
Adjustable lower knife height with separate front/rear adjustment
No thin plates required after knife re-sharpening
Operation and maintenance suitable for unskilled personnel

PCB Manufacturing Equipment Specifications

Specification	Value
Maximum Board Length	300mm / 400mm
Package Size	720mm(L)×300mm(W)×440mm(H)
Thickness Range	0.50-3.5mm
Power Supply	220VAC / 110V
Working Air Pressure	0.4-0.6Mpa
Weight	189 kg
Application Scope	All V-CUT SMD PCB Boards
