High Quality SMT Printed Circuit Board Cutting Machine for PCB Assembly

제품 상세정보

원래 장소: 중국 장쑤성

브랜드 이름: YUSH

지불과 운송 용어

최소 주문 수량: 1세트

가격: $39,800 / set

가장 좋은 가격 을 구하라

제품 상세정보

제품 설명

강조하다:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                SMT PCB cutting machine, PCB depaneling machine for assembly, printed circuit board cutting tool


무게:	350KG	전압:	220V
힘:	110V/220V AC 60HZ/50HZ	크기:	L1300W400H1000mm
PCB 두께:	0.8-3.0mm	절단 속도:	조절할 수 있는
톱 커터 조정:	0-5mm	보드 폭 범위:	15-20mm
블레이드 재질:	Skh51 고속도강	핵심 구성요소:	PLC, 모터
절단 공정:	제한 없는	적용 가능한 보드:	LED 패널, 섬유판, 알루미늄 보드(>400mm)
커터 조정:	거리 조절 가능	컨베이어 벨트:	포함됨
다중 절단기:	예

무게:	350KG
전압:	220V
힘:	110V/220V AC 60HZ/50HZ
크기:	L1300W400H1000mm
PCB 두께:	0.8-3.0mm
절단 속도:	조절할 수 있는
톱 커터 조정:	0-5mm
보드 폭 범위:	15-20mm
블레이드 재질:	Skh51 고속도강
핵심 구성요소:	PLC, 모터
절단 공정:	제한 없는
적용 가능한 보드:	LED 패널, 섬유판, 알루미늄 보드(>400mm)
커터 조정:	거리 조절 가능
컨베이어 벨트:	포함됨
다중 절단기:	예

High Quality SMT Printed Circuit Board Cutting Machine for PCB Assembly

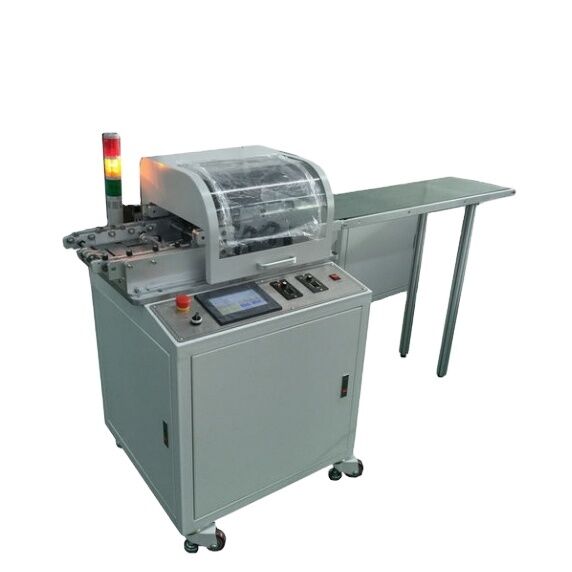

YSVJ-650 PCB Depaneling Machine

High Quality SMT Printed Circuit Board Cutting Machine for PCB Assembly

Key Features

Integral shaft design for top and bottom knives ensures convenient installation and handling
Computer screen control with production counting and direct gap display
Capable of cutting all V-cut PCB boards
Reduces stress during cutting to prevent solder joint cracking
Multiple cutter configuration allows cutting several boards simultaneously
Top cutter wheel adjustable from 0-5mm
Adjustable knife distance suitable for single PCB boards within 15-20mm width
SKH51 high-speed steel blades for long service life and wear resistance
Variable cutting speed controlled by turn-knob
Integrated conveyor belt for automated board handling and next-machine docking
Versatile application for LED panels, fiberboards, aluminum boards (400mm+), and special boards
Efficient operation suitable for mass production environments

Technical Specifications

Power Supply	110V/220V AC 60HZ/50HZ
Dimensions	L1300 × W400 × H1000mm
Weight	350kg
Cutting Process	Unlimited
PCB Thickness Range	0.8-3.0mm
Applicable Materials	LED panels, fiberboards, aluminum boards (400mm+), special boards

Manufacturer Profile

YUSH Electronic Technology Co., Ltd. was founded in 2004 and is located in Jiangsu, China. We specialize in professional PCB separator and depanelizer electronic equipment machinery. Our company features advanced production and processing equipment supported by an experienced development and manufacturing team, with half of our staff possessing over 10 years of experience in the electronic equipment industry.

Since 2004, we have focused on developing and manufacturing PCB separators and depaneling machines, emphasizing product quality, safety, and innovation. Our product line includes high-quality, stable performance, cost-effective solutions that improve production yields and enhance customer competitiveness. We offer various PCB separation types including manual, motor-driven, pneumatic-driven, mold punching, and milling cutter router machines.

Quality Assurance

• Pre-production sampling before mass production

• Final inspection before shipment

Product Range

PCB depaneling, PCB separator, PCB cutting machine, PCB depaneler, V-cut machine

Global Presence

Our customers are located worldwide, including Eastern Europe (20%), North America (20%), South America (15%), Southern Europe (10%), Northern Europe (10%), Western Europe (10%), South Asia (10%), and Middle East (5%).

Payment & Delivery

Accepted Delivery Terms: FOB, CIF, EXW, DDP, DDU, Express Delivery, DAF

Accepted Payment Methods: T/T, L/C, D/P D/A, MoneyGram, Credit Card, PayPal, Western Union, Cash, Escrow

Languages: English, Chinese, Spanish, Japanese, Portuguese, German, Arabic, Korean, Hindi
