강조하다:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                high efficiency PCB depaneling machine, multi blade PCB depaneling machine, practical PCB assembly depaneling machine


무게:	350KG	크기:	L1300W400H1000mm
힘:	110V/220V AC 60HZ/50HZ	PCB 두께:	0.8-3.0mm
절단 속도:	조절할 수 있는	톱 커터 조정:	0-5mm
단일 PCB 폭:	15-20mm	블레이드 재질:	Skh51 고속도강
보드 종류:	LED 패널, 섬유판, 알루미늄판(>400mm), 특수판	핵심 구성요소:	PLC, 모터
절단 공정:	제한 없는	다중 절단기:	예
컨베이어 벨트:	포함됨	절단 응력:	줄인
디스플레이 화면:	간격 표시

무게:	350KG
크기:	L1300W400H1000mm
힘:	110V/220V AC 60HZ/50HZ
PCB 두께:	0.8-3.0mm
절단 속도:	조절할 수 있는
톱 커터 조정:	0-5mm
단일 PCB 폭:	15-20mm
블레이드 재질:	Skh51 고속도강
보드 종류:	LED 패널, 섬유판, 알루미늄판(>400mm), 특수판
핵심 구성요소:	PLC, 모터
절단 공정:	제한 없는
다중 절단기:	예
컨베이어 벨트:	포함됨
절단 응력:	줄인
디스플레이 화면:	간격 표시

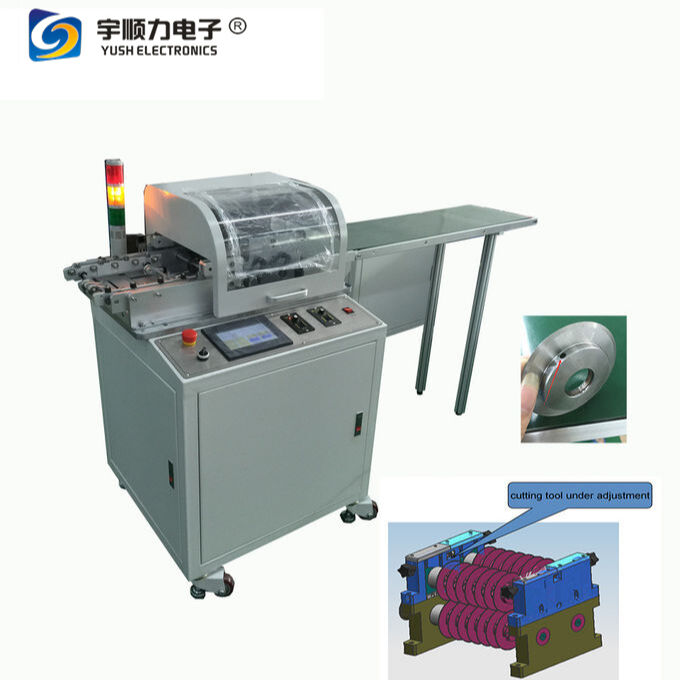

Super Practical High Efficiency Multi Blades PCB Depaneling Machine for PCB Assembly

High Efficiency PCB Depaneling Machine

Super Practical Multi-Blades PCB Depaneling Machine designed for efficient PCB assembly operations with advanced features for mass production.

Key Features & Benefits

Integral shaft design for top and bottom knives ensures easy installation and maintenance
Computer screen control with production counting and direct gap display for precise operation
Compatible with all V-cut PCB boards for universal application
Reduces cutting stress to prevent solder joint cracking and board damage
Multiple cutter system enables simultaneous cutting of several boards
Top cutter wheel adjustable from 0-5mm for fine-tuning cutting parameters
Adjustable knife distance suitable for single PCB boards within 15-20mm width
SKH51 high-speed steel blades provide exceptional wear resistance and long service life
Variable cutting speed controlled by convenient turn-knob adjustment
Integrated conveyor belt system for automatic board ejection and seamless production line integration
Multi-blade operation ensures simple, efficient performance ideal for mass production environments

Technical Specifications

Power Supply	110V/220V AC 60HZ/50HZ
Dimensions	L1300 × W400 × H1000mm
Weight	350 kg
Cutting Process	Unlimited operation capability
PCB Thickness Range	0.8-3.0mm
Compatible Materials	LED panels, fiberboards, aluminum boards (≥400mm), and special boards
