                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                CCD automatic PCB depaneling machine, high precision PCB router machine, online PCB depaneling equipment


무게:	3500kg	힘:	10kW
전압:	220V, 110V	모델:	YASTM-4C
정도:	±20 μm	레이저 파장:	355 nm
레이저 파워:	10W	재료 두께:	1.2mm 이하
플랫폼 정밀도:	±2 μm	작업 영역:	600*450 mm
최대 출력:	3KW	빔 직경:	20±5μm
주변 온도:	20±2℃	기계 재료:	대리석
치수:	1480mm1360mm1412mm

무게:	3500kg
힘:	10kW
전압:	220V, 110V
모델:	YASTM-4C
정도:	±20 μm
레이저 파장:	355 nm
레이저 파워:	10W
재료 두께:	1.2mm 이하
플랫폼 정밀도:	±2 μm
작업 영역:	600*450 mm
최대 출력:	3KW
빔 직경:	20±5μm
주변 온도:	20±2℃
기계 재료:	대리석
치수:	1480mm1360mm1412mm

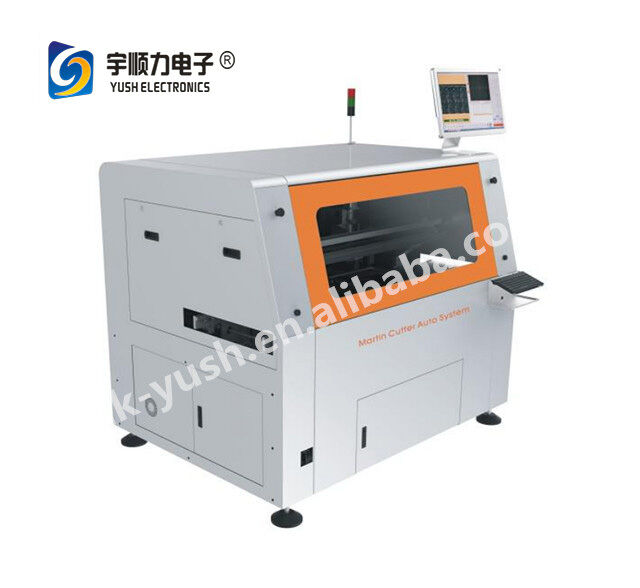

High Precision CCD Automatic Positioning/online Pcb Router Machine

High Precision CCD Automatic Positioning Online PCB Router Machine

Laser PCB Separator with ±20 μm Precision for FR4 PCB Boards

450×430 mm 15W UV PCB Separator / FR4 Board Laser Depaneling Machine with ±20 μm Precision

Advanced Laser Depaneling Technology

Completely software-controlled laser process with adaptable processing parameters and laser paths for varying materials and cutting contours
UV laser cutting eliminates appreciable mechanical or thermal stresses on components
Minimal cutting channel requirement (few µm) enables higher component density on panels
Dual-mode system software separates production and setup processes to reduce operator errors
Integrated vision system with fiducial recognition operates 100% faster than previous versions

YASTM-4C Laser Depanelizer Machine Features

High Precision Positioning: CCD automatic positioning with automatic focusing for fast, accurate operation
User-Friendly Design: Simple interface, easy operation, compact footprint, and rigorous security design
Energy Efficient: Reduced energy consumption for significant cost savings
High Performance: Cost-effective solution with fast cutting speed and stable performance

YASTM-4C Technical Specifications

Parameter	Specification
Technical Parameters	Main body of laser: 1480mm × 1360mm × 1412mm
Power	AC220 V
Laser Type	355 nm
Laser Source	Optowave 10W (US)
Material Thickness	≤1.2 mm
Precision	±20 μm
Platform Precision	±2 μm
Working Area	600 × 450 mm
Maximum Power	3 KW
Vibration Control	CTI (US)
Beam Diameter	20±5 μm
Ambient Temperature	20±2 ℃
Machine Base	Marble
