강조하다:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                desktop PCB router milling machine, PCB depaneling machine with warranty, compact desktop PCB milling machine


무게:	135 KG	힘:	10kW
전압:	220V/380V	모델:	YS-L530
차원:	L623W737H587mm	기계 동력:	3.6kW
더 깨끗한 전력량:	2.2KW/220V	표 차원:	260mm*260mm
절단 속도:	0-100mm/s	반복성 정확도:	±0.01mm
작업 영역:	X:0-260mm, Y:0-260mm, Z:0-80mm	PCB 두께:	0.5-5mm
라우터 비트 지름:	0.8-3.0mm	스핀들 속도:	60000rpm
에어 프레스:	0.4mpa

무게:	135 KG
힘:	10kW
전압:	220V/380V
모델:	YS-L530
차원:	L623W737H587mm
기계 동력:	3.6kW
더 깨끗한 전력량:	2.2KW/220V
표 차원:	260mm*260mm
절단 속도:	0-100mm/s
반복성 정확도:	±0.01mm
작업 영역:	X:0-260mm, Y:0-260mm, Z:0-80mm
PCB 두께:	0.5-5mm
라우터 비트 지름:	0.8-3.0mm
스핀들 속도:	60000rpm
에어 프레스:	0.4mpa

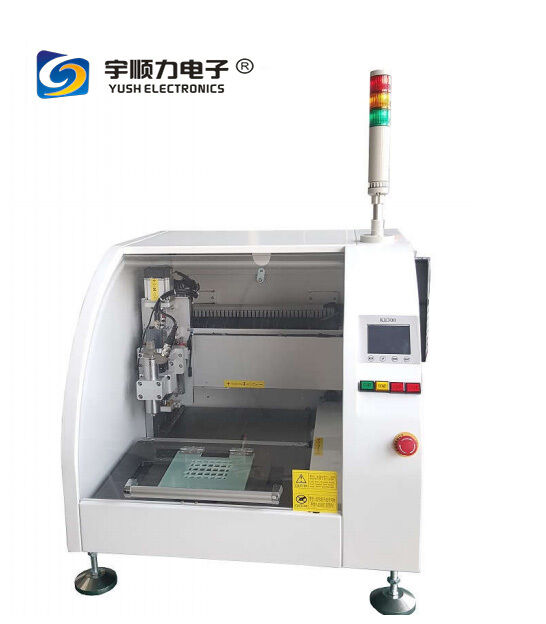

Desktop PCB Router Milling Machine

Key Features

Bottom dust collection system utilizing free fall theory for optimal dust removal
Specialized fixtures ensure secure positioning to maintain cutting accuracy
Automatic system correction based on product installation position for high-precision cutting
Built-in static eliminator removes electricity and dust while air nozzles continuously work to prevent static damage and dust accumulation
Safety door design reduces noise, contains dust, and enhances operational safety
Integrated dust collection box with maintenance scheduling based on cutting requirements

Applications

Ideal for separating stamp hole PCB boards and irregular joint PCB boards

Technical Specifications

Function Items	Hardware Demand
Model	YS-L530
Dimension	L623W737H587mm
Power	220V/50HZ
Machine Power	3.6KW
Weight	About 300KG
Cleaner Dimension	Inside / L650W500H550mm
Cleaner Wattage	2.2KW/220V
Table Dimension	260mm*260mm
Cutting Speed	0-100mm/s
X,Y,Z Axis Driving Speed	X, Y axis 0-1000mm/s (min), Z axis 0-750mm/s (min), servo motor drive
Repeatability Accuracy	±0.01mm
Working Area	X:0-260mm, Y:0-260mm, Z:0-80mm
PCB Thickness	0.5-5mm
Router Bit Diameter	0.8-3.0mm
Cutting Precision	±0.01mm
Cutting Ability	Linear, Circular, U-curve, Arc, L-curve
Cutter Change	Manual, tools needed
Spindle Speed	60000rpm
Spindle Cooling System	Air cooling mode
Safety Device	Safety door and door lock sensor
Voice Control	≤78 dB (measured in 1M distance)
