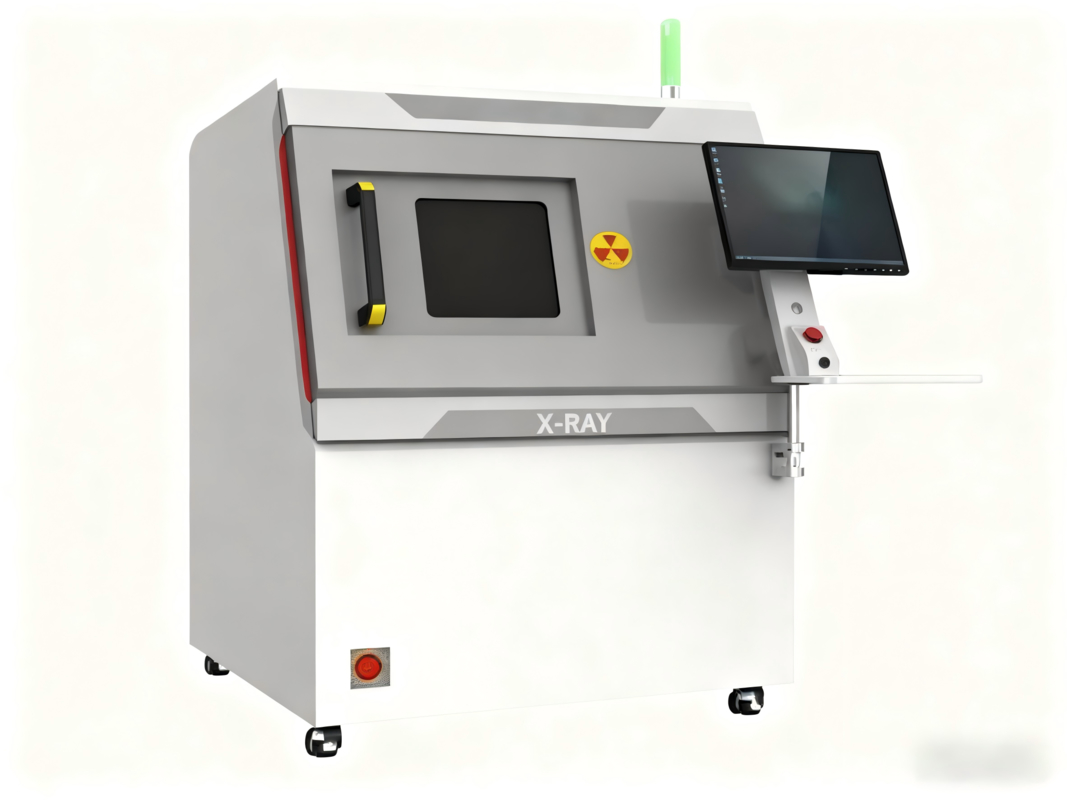

High Quality and High Efficiency Microfocus X-RAY Inspection System

제품 상세정보

원래 장소: 광동

브랜드 이름: YUSH

모델 번호: YS-X6600

지불과 운송 용어

최소 주문 수량: 1

가격: USD43000

배달 시간: 20 일

지불 조건: L/C, D/A, D/P, T/T, 서부 동맹

공급 능력: 1000

가장 좋은 가격 을 구하라
강조하다:

Microfocus X-RAY inspection system

,

High efficiency PCB depaneling machine

,

X-RAY inspection system with warranty

튜브 전압:
40-90kV
튜브 전류:
10-200uA(소프트웨어는 89uA로 제한됨)
영상부:
130mm*130mm
반복 테스트 정확도:
3μm
튜브 전압:
40-90kV
튜브 전류:
10-200uA(소프트웨어는 89uA로 제한됨)
영상부:
130mm*130mm
반복 테스트 정확도:
3μm
High Quality and High Efficiency Microfocus X-RAY Inspection System
High Quality and High Efficiency Microfocus X-RAY Inspection System
Function
  • X-ray tube and detector can move along Z direction
  • Speed of table moving along X-Y direction can be adjusted
  • High-definition digital flat panel detector
  • Max Inclined Angle is 60°, samples can be observed with a unique perspective
  • Fault less than 2.5μm can be detected
  • High detection repeat accuracy
  • Powerful CNC Measuring Function, can test automatically, testing program can be edited
  • Large inspection space, can put various large-sized samples
  • The table can carry 10KG items
  • Large navigation view, table will move to where you click the mouse
High Quality and High Efficiency Microfocus X-RAY Inspection System 0
Advantages
  • Larger effective detection range, improving the magnification and the detection efficiency of the product
  • Easy to identify the side defects of the product and achieve no dead angle detection
  • Easy to distinguish the gold wire bending and break of the semiconductor package
  • Suitable for large-scale inspection and improve detection efficiency
  • Large table for large industrial control boards, ultra-long LED strips, and electronic products for various fields
  • Very easy to operate, quickly find item defects and improve detection efficiency
High Quality and High Efficiency Microfocus X-RAY Inspection System 1
Technical Specifications
Focal spot size 5-15μm
Inclined Angle 0-60°
Pixel matrix 1536*1536 pixels
Effective inspection area 500mm×420mm
Load capacity ≤5Kg
